| MOQ: | 1 pieces |
| Price: | Contact us |
| Standard Packaging: | Original packaging box+Based on customer needs |
| Delivery Period: | 2-7 working days |
| In Stock | |
| LCL, AIR, FCL, Express | |
| S5731-S48P4X | |
| Payment Method: | L/C, D/A, D/P, T/T, Western Union |
| Supply Capacity: | /pieces >=1 pieces |

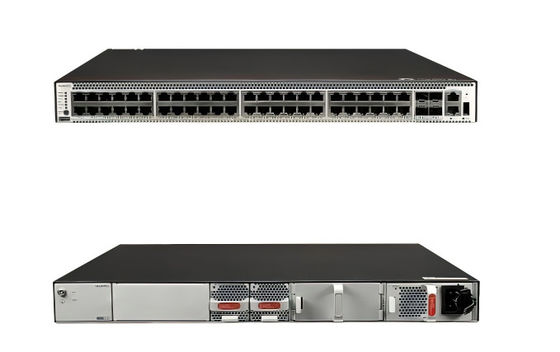

This Huawei switch comes with 48 10/100/1000BASE-T ports, 4 10GE SFP+ ports, PoE+, is one of the Huawei S5731-S series switches. The S5731-S series switches were developed based on next-generation high-performing hardware and the Huawei Versatile Routing Platform (VRP).
The CloudEngine S5731-S supports simplified operations and maintenance (O&M), intelligent stack (iStack), flexible Ethernet networking. It also provides enhanced Layer 3 features and mature IPv6 features. The CloudEngine S5731-S can be used in various scenarios. For example, it can be used as an access or aggregation switch on a campus network or as an access switch for Metropolitan Area Network.
48 10/100/1000BASE-T ports
4 10GE SFP+ ports, PoE+
1 AC equipped
Forwarding performance: 125 Mpps
Switching capacity: 176 Gbps/672 Gbps
|
1. Forty-eight PoE+ 10/100/1000BASE-T ports
SFP-1000Base-T |
7. Ground screw |
|
2. Four 10GE SFP+ ports
OMXD30000 OSX010000 OSX040N01
|
8. Fan module slot 1 |
|
3. One console port |
9. Fan module slot 2 |
|
4. One ETH management port |
10. Power module slot 1 |
|
5. One USB port |
11. Power module slot 2 |
|
6. One PNP button |
Table 1 shows the Quick Specs.
| Product Code | S5731-S48P4X |
| Fixed port | 48 x 10/100/1000Base-T (PoE+) ports, 4 x 10GE SFP+ ports |
| Dimensions (W x D x H) | 442 mm x 420 mm x 43.6 mm |
| Chassis height | 1 U |
| Power supply type | 1000 W PoE AC (pluggable) |
| Rated voltage range | AC input (1000 W AC PoE): 100 V AC to 240 V AC, 50/60 Hz |
|
Maximum voltage range
|
AC input (1000 W AC PoE): 90 V AC to 290 V AC, 45 Hz to 65 Hz High-voltage DC input (1000 W AC PoE): 190 V DC to 290 V DC (meeting 240 V high-voltage DC certification) |
| Maximum power consumption |
132W (without PD) 1750W (with PD, PD power consumption of 1440 W) |
The Huawei S5731-S series switches provides these features and highlights:
* Powerful Service Processing Capability and Multiple Security Control Mechanisms
* Easy O&M
* Multiple Reliability Mechanisms
* Mature IPv6 Technologies
* Intelligent Stack (iStack)
* VXLAN Features
* PoE Power Supply
* Intelligent O&M
* Intelligent Upgrade
* Big Data Security Collaboration
* OPS
Table 3 shows the comparison.
| Product Code | S5731-S24P4X | S5731-S24T4X | S5731-S48P4X | S5731-S48T4X |
| Fixed port | 24 x 10/100/1000Base-T (PoE+) ports, 4 x 10GE SFP+ ports | 442 mm x 420 mm x 43.6 mm | 48 x 10/100/1000Base-T (PoE+) ports, 4 x 10GE SFP+ ports | 48 x 10/100/1000Base-T ports, 4 x 10GE SFP+ ports |
| Dimensions (W x D x H) | 442 mm x 420 mm x 43.6 mm | 1 U | 442 mm x 420 mm x 43.6 mm | 442 mm x 420 mm x 43.6 mm |
| Chassis height | 1 U | 8.4 kg | 1 U | 1 U |
| Chassis weight (including packaging) | 8.6kg |
150 W AC (pluggable) 600 W AC (pluggable) 1000 W DC (pluggable) |
8.8kg | 8.55kg |
| Power supply type | 1000 W PoE AC (pluggable) |
AC input (150 W AC ): 100 V AC to 240 V AC, 50/60 Hz AC input (600 W AC ): 100 V AC to 240 V AC, 50/60 Hz DC input (1000 W DC): -48 VDC to -60 V DC |
1000 W PoE AC (pluggable) |
150 W AC (pluggable) 600 W AC (pluggable) 1000 W DC (pluggable) |
| Rated voltage range | AC input (1000 W AC PoE): 100 V AC to 240 V AC, 50/60 Hz |
AC input (150 W AC ): 100 V AC to 240 V AC, 50/60 Hz AC input (600 W AC ): 100 V AC to 240 V AC, 50/60 Hz DC input (1000 W DC): -48 VDC to -60 V DC |
AC input (1000 W AC PoE): 100 V AC to 240 V AC, 50/60 Hz |
AC input (150 W AC ): 100 V AC to 240 V AC, 50/60 Hz AC input (600 W AC ): 100 V AC to 240 V AC, 50/60 Hz DC input (1000 W DC): -48 VDC to -60 V DC |
| Maximum power consumption |
121 W (without PD) 977 W (with PD, PD power consumption of720 W) |
114 W |
132W (without PD) 1750W (with PD, PD power consumption of1440 W) |
124 W |
|
|
