| MOQ: | 1 pieces |
| Price: | Contact us |
| Standard Packaging: | Original packaging box+Based on customer needs |
| Delivery Period: | 2-7 working days |
| In Stock | |
| Express, AIR | |
| Enterprise Huawei CloudEngine 10GB Poe Switch S6730-H48X6C | |
| Payment Method: | L/C, D/A, D/P, T/T, Western Union |
| Supply Capacity: | /pieces >=1 pieces |
CloudEngine S6730-H Series 10 GE Switches deliver 10 GE downlink and 100 GE uplink connectivity for enterprise campuses, carriers, higher education institutions, and governments, integrating native Wireless Local Area Network (WLAN) Access Controller (AC) capabilities, to support up to 1024 WLAN Access Points (APs).The series enables the convergence of wired and wireless networks — greatly simplifying operations — offering free mobility to deliver a consistent user experience and Virtual Extensible Local Area Network (VXLAN)-based virtualization, creating a multi-purpose network. With built-in security probes, CloudEngine S6730-H supports abnormal traffic detection, Encrypted Communications Analytics (ECA), and network-wide threat deception.
• The CloudEngine S6730-H series uses the Packet Conservation Algorithm for Internet (iPCA) technology that alters the traditional method of using simulated traffic for fault location. iPCA technology can monitor network quality for any service flow anywhere, anytime, without extra costs. It can detect temporary service interruptions in a very short time and can identify faulty ports accurately. This cutting-edge fault detection technology turns "extensive management" to "granular management."
• The CloudEngine S6730-H supports Two-Way Active Measurement Protocol (TWAMP) to accurately check any IP link and obtain the entire network's IP performance. This protocol eliminates the need of using a dedicated probe or a proprietary protocol
The Huawei cloud management platform allows users to configure, monitor, and inspect switches on the cloud, reducing on-site deployment and O&M manpower costs and decreasing network OPEX. Huawei switches support both cloud management and on-premise management modes. These two management modes can be flexibly switched as required to achieve smooth evolution while maximizing return on investment (ROI).
|
S6730-H48X6C |
Technical Specification |
|
|
Fixed ports |
48 x 10 Gig SFP+, 6 x 40/100 Gig QSFP28 |
|
|
Dimensions (W x D x H) |
442 mm x 420 mm x 43.6 mm |
|
|
Chassis height(U) |
1U |
|
|
Input voltage |
AC Power
• Rated AC voltage: 100V to 240V AC; 50/60 Hz
• Max. AC voltage: 90V to 290V AC; 45–65 Hz
DC Power
• –48V～–60V
|
|
|
Switching Capacity |
2.16/2.4 Tbit/s |
|
|
Input current |
AC 600W:Max 8A DC 1000W:Max 30A |
|
|
Maximum power consumption |
274W |
|
|
Minimum power consumption |
97W |
|

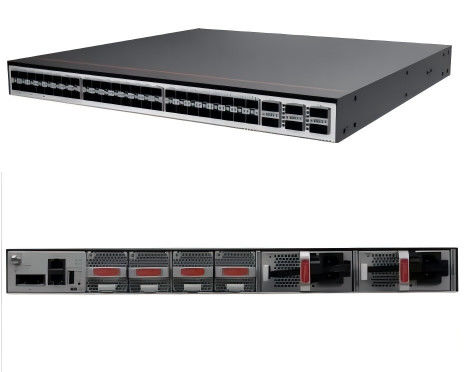

Figure 1 shows the back panel of Huawei S6730-H48X6C switch.
|
① |
Ground screw |
⑦ |
Fan module slot 1 |
|
② |
SSD card slot |
⑧ |
Fan module slot 2 |
|
③ |
One console port |
⑨ |
Fan module slot 3 |
|
④ |
One ETH management port |
⑩ |
Fan module slot 4 |
|
⑤ |
One USB port |
⑪ |
Power module slot 1 |
|
⑥ |
One PNP button |
⑫ |
Power module slot 2 |
|
|
