| MOQ: | 1 pieces |
| Price: | Determine based on market prices |
| Standard Packaging: | Original packaging box+Based on customer needs |
| Delivery Period: | 2-7 working days |
| In Stock | |
| 2288H V7 | |
| Payment Method: | L/C, D/A, D/P, T/T, Western Union |
| Supply Capacity: | /pieces >=2 pieces |
Main application scenarios
SDS
VDI
CDN
Virtualization
Big data
Database
Cloud scenarios
AI inference
Small businesses
OA
Web application

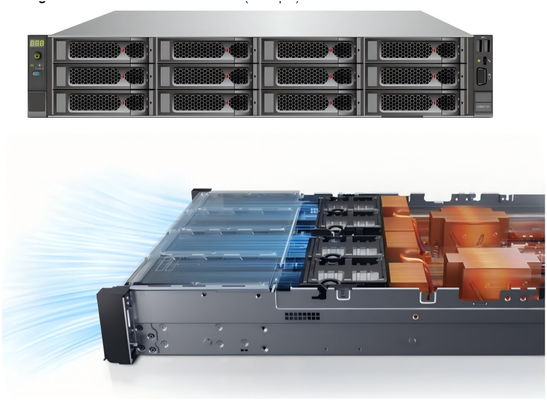

• FusionServer 2288H V7 (2288H V7) is a new-generation 2U 2-socket rack server designed for SDS, VDI, CDN, virtualization, big data, database, cloud scenarios, AI inference, small enterprises, OA, and web applications, meeting requirements of enterprise or telecom service applications and other complex workloads.
• The 2288H V7 features low power consumption, high scalability and reliability, easy deployment, and simplified management.
| FusionServer 2288H V7 | |
| Local Storage |
Hot-swappable drives with the following configuration options are supported: • 8 to 35 x 2.5ʺ SAS/SATA/SSD drives • 12 to 18 x 3.5ʺ SAS/SATA drives • 4/8/16/24 x NVMe SSDs • Up to 45 x 2.5ʺ drives, or 28 x full NVMe SSDs* • 2 x M.2 SSDs, hardware RAID, and hot swap |
| RAID Support |
RAID 0, 1, 10, 1E, 5, 50, 6, or 60; optional supercapacitor for cache data power failure protection, RAID level migration, drive roaming, self-diagnosis, and remote web-based configuration |
| Network |
Expansion capability of multiple types of networks OCP 3.0 NICs are supported. Both two FlexIO card slots support two OCP 3.0 NICs, which can be configured as required. Hot swap is supported |
| PCIe Expansion | Up to 19 x PCIe slots: 2 x FlexIO slots dedicated for OCP 3.0 NICs and 17 x standard PCIe expansion slots*, 8 slots of which support PCIe 5.0 |
| Power Supply |
900 W/1200 W/1500 W/2000 W/3000 W Platinum/Titanium hot-swappable PSUs in 1+1 redundancy |
| Operating Temperature | 5ºC to 50ºC (41ºF to 122ºF), compliant with ASHRAE Classes A1, A2, A3, and A4 |
| Installation Kit | L-shaped guide rails, adjustable guide rails, and holding rails |
|
Management |
The iBMC chip integrates one dedicated management GE network port, providing comprehensive management features such as fault diagnosis, automatic O&M, and hardware security hardening • The iBMC supports standard interfaces such as Redfish, SNMP, and IPMI 2.0, provides a remote management interface based on HTML5/VNC KVM, and supports out-of-band management functions such as monitoring, diagnosis, configuration, Agentless, and remote control for simplified management • It is optional to configure the FusionDirector management software that provides advanced management features such as five intelligent technologies and realizes intelligent, automated, visualized, and refined management throughout the lifecycle |
Robust Performance
High Reliability and Security
Efficient Energy Saving
Saving Energy by up to 8% Compared with the Industry Average
The unique algorithm is provided for the lowest power consumption of fans and CPUs
Intelligent Service Awareness, Dynamic Load Adjustment
The CPU working frequency is dynamically adjusted based on the actual service load
Industry-leading Power Supply Technology for Higher Efficiency
Three core technologies improve power and efficiency, enabling the industry-leading power conversion rate and the power loss 12.5% lower than the industry average
