| MOQ: | 1 pieces |
| Price: | Determine based on market prices |
| Standard Packaging: | Original packaging box+Based on customer needs |
| Delivery Period: | 2-7 working days |
| In Stock | |
| FusionServer 5288 V7 | |
| Payment Method: | L/C, D/A, D/P, T/T, Western Union |
| Supply Capacity: | /pieces >=2 pieces |
Main application scenarios:
Digital currency
Cool data storage
SDS
Video storage

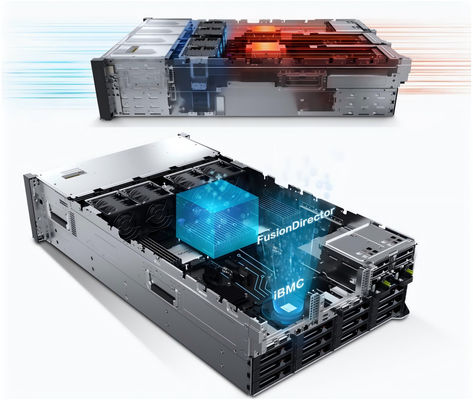

• FusionServer 5288 V7 (5288 V7) is a new-generation 4U 2-socket rack server designed for the Internet, Internet Data Center (IDC), core IT services, cloud computing, virtualization, distributed storage, big data processing, enterprise or telecom service applications, and other complex workloads.
• 5288 V7 features low power consumption, high scalability and reliability, easy deployment, and simplified management.
| FusionServer 5288 V7 | |
| Local Storage |
Hot-swappable drive configurations: • 4 x 2.5ʺ SAS/SATA drives/SSDs • 24 to 44 x 3.5ʺ SAS/SATA drives • 4 x NVMe SSDs Flash storage: • 2 x M.2 SSDs |
| RAID Support |
RAID 0, 1, 10, 1E, 5, 50, 6, or 60; optional supercapacitor for cache data power failure protection, RAID level migration, drive roaming, self-diagnosis, and remote web-based configuration |
| Network |
Expansion capability for multiple types of networks OCP 3.0 NICs are supported. The two FlexIO card slots support two OCP 3.0 NICs, which can be configured as required. Hot swap and PCIe 5.0 are supported |
| PCIe Expansion |
Up to 10 x PCIe slots, including 2 x FlexIO slots dedicated for OCP 3.0 NICs and 10 x PCIe expansion slots. PCIe 5.0 is supported |
| Power Supply |
900 W/1200 W/1500 W/2000 W/3000 W Platinum/Titanium hot-swappable PSUs in 1+1 redundancy |
| Operating Temperature | 5ºC to 35ºC (41ºF to 95ºF), Class A1/A2 |
| Installation Kit | L-shaped guide rails, adjustable guide rails, and holding rails |
|
Management |
The iBMC chip integrates one dedicated management GE network port, providing comprehensive management features such as fault diagnosis, automatic O&M, and hardware security hardening • The iBMC supports standard interfaces such as Redfish, SNMP, and IPMI 2.0, provides a remote management interface based on HTML5/VNC KVM, and supports out-of-band management functions such as monitoring, diagnosis, configuration, Agentless, and remote control for simplified management • It is optional to configure the FusionDirector management software that provides advanced management features such as five intelligent technologies and realizes intelligent, automated, visualized, and refined management throughout the lifecycle |
Ultra-large Storage
Ultra-large Storage
Supports 44 x 3.5" drives + 4 x NVMe U.2 SSDs
Flexible Configuration
Supports up to 10 x standard PCIe slots
Supreme Computing Power
4th or 5th Gen Intel® Xeon® Scalable processors with 385 W TDP per processor, and 32 x DDR5 DIMMs
High Reliability and Security
50% Better Heat Dissipation Capability Than a Single Heat Sink
Advanced Extended Volume Air Cooling (EVAC) ensures reliable heat dissipation and stronger temperature adaptation
66% Less System Downtime
Unique AI memory fault self-healing ensures stable system running
Efficient Energy Saving
Saving Energy by Up to 8% Compared with the Industry Average
The unique algorithm is provided for the lowest power consumption of fans and CPUs
Industry-leading Power Supply Technology for Higher Efficiency
Three core technologies improve power and efficiency, enabling the industry-leading power conversion rate and the power loss 12.5% lower than the industry average
Intelligent Service Awareness, Dynamic Load Adjustment
The CPU working frequency is dynamically adjusted based on the actual service load
Video
Video
Video
Video
Video
Video
Video
Video
|
|
