| MOQ: | 1 pieces |
| Price: | Determine based on market prices |
| Standard Packaging: | Original packaging box+Based on customer needs |
| Delivery Period: | 2-7 working days |
| In Stock | |
| FusionServer 2488 V5 | |
| Payment Method: | L/C, D/A, D/P, T/T, Western Union |
| Supply Capacity: | /pieces >=2 pieces |

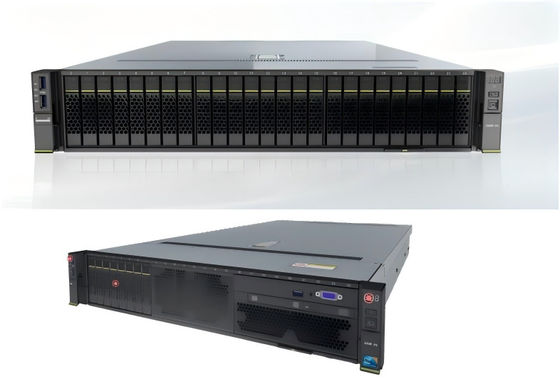

FusionServer 2488 V5 is a 2U 4-socket rack server. It offers an ideal choice for compute-intensive applications, such as virtualization, HPC, database, and SAP HANA. One FusionServer 2488 V5 server reduces OPEX by about 32% compared with 2 traditional 2U, 2S rack servers. The FusionServer 2488 V5 supports 4 Intel® Xeon® Scalable processors in a 2U space, up to 32 DDR4 DIMMs , and up to 25 x 2.5-inch hard drives for local storage (configurable with 8 NVMe SSDs). It also incorporates patented technologies such as Dynamic Energy Management Technology (DEMT) and Fault Diagnosis & Management (FDM), and integrates FusionDirector software for entire-lifecycle management, helping customers drive down OPEX and improve ROI. * Source: Test results from Global Computing Innovation OpenLab, Q2 2017.
| FusionServer 2488 V5 | |
| Internal Storage |
Supports hot-swappable hard drives with the following configuration options: 8 x 2.5-inch SAS/SATA HDDs on the front 25 x 2.5-inch SAS/SATA HDDs on the front 8 x 2.5-inch NVMe SSDs and 16 x 2.5-inch SAS/SATA HDDs on the front Flash storage: 2 x M.2 SSDs |
| RAID Support |
RAID 0, 1, 10, 1E, 5, 50, 6, or 60 Configured with a supercapacitor for cache power-off protection Supports RAID level migration, drive roaming |
| Network |
2 x GE + 2 x 10 GE ports |
| PCIe Expansion | Up to 9 PCIe 3.0 slots |
| Power Supply |
2 hot-swappable PSUs, with support for 1+1 redundancy. The following PSUs are supported: 2,000W AC Platinum PSUs 1,500W AC Platinum PSUs 900W AC Platinum PSUs 1,200W DC PSUs |
| Operating Temperature | 5°C to 45°C (41°F to 113°F), compliant with ASHRAE Classes A3 and A4 |
| Installation Kit | L-shaped guide rails, adjustable guide rails, and holding rails |
|
Management |
BMC integrates one dedicated management GE network port to provide comprehensive management features such as fault diagnosis, automated O&M, and hardware security hardening BMC supports standard interfaces such as Redfish, SNMP, and IPMI 2.0; provides a remote management interface based on HTML5/VNC KVM; supports CD-free deployment and the Agentless feature, simplifying management (Optional) Configured with the FusionDirector management software to provide advanced management features such as stateless computing, batch OS deployment, and automated firmware upgrade, enabling smart and automatic entire-lifecycle management |
