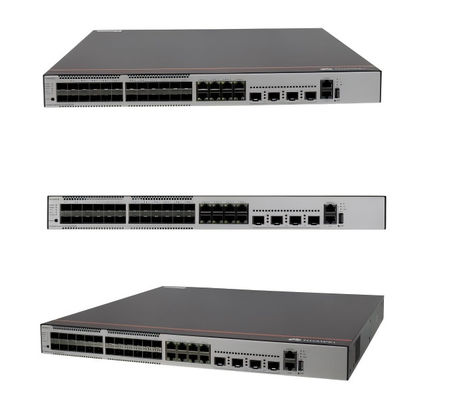

S5735-S32ST4X is the Huawei S5735-S switch with 24 GE SFP ports, 8 10/100/1000BASE-T ports, and 4 10 GE SFP+ ports. Huawei CloudEngine S5735-S is a series of standard gigabit access switches that provide 24–48 flexible all-GE downlink ports and four fixed 10 GE uplink ports.
They are designed for enterprise campus network access and aggregation, as well as data center access.
Built on next-generation, high-performance hardware and with the Huawei Versatile Routing Platform (VRP), CloudEngine S5735-S switches boast advanced features, such as enhanced Layer 3 functionality, simplified O&M, flexible Ethernet networking, and mature IPv6 capabilities.
24 GE SFP ports, 8 10/100/1000BASE-T ports, 4 10 GE SFP+ ports
Forwarding performance is 108Mpps
Switching capacity is 144Gbps
| 1. Twenty-four 10/100/1000BASE-X ports
eSFP-GE-SX-MM850 eSFP-GE-ZX100-SM1550 LE2MGSC40DE0 |
6. One USB port |
| 2. Eight 10/100/1000BASE-T ports | 7. One PNP button |
| 3. Four 10GE SFP+ ports
OMXD30000 OSX010000 OSX040N01 SFP-10G-ZR SFP-10G-USR |
8. Ground screw |
| 4. One console port | 9. Power module slot 1 |
| 5. One ETH management port | 10. Power module slot 2 |
Table 1 shows the quick spec.
| Product Model | S5735-S32ST4X |
| Forwarding Performance | 108 Mpps |
| Switching Capacity | 144 Gbps/432 Gbps |
| Fixed Ports | 24 x GE SFP ports, 8 x 10/100/1000BASE-T ports, 4 x 10 GE SFP+ ports |
| PoE+ | Not supported |
Table 2 shows the recommended models.
| Model | Description |
| OMXD30000 | Huawei Optical Transceiver OMXD30000, SFP+, 10G, Multi-mode Module (850nm, 0.3km, LC) |
| OSX010000 | Optical Transceiver, SFP+, 10G, Single-mode Module (1310nm, 10km, LC) |
| SFP-GE-LX-SM1310 | Optical Transceiver, eSFP, GE, Single-mode Module (1310nm, 10km, LC) |
| OSXD22N00 | Optical Transceiver, SFP+, 10G, Multi-mode Module (1310nm, 0.22km, LC, LRM) |
| SFP-10G-USR | 10GBase-USR Optical Transceiver, SFP+, 10G, Multi-mode Module (850nm, 0.1km, LC) |
| OMXD30009 | Transceiver, QSFP+, 1310nm, 41.25Gbps, -7dBm, 2.3dBm, -11.5dBm, LC, SMF, 10 |
| SFP-10G-LR | Huawei Optical Transceiver SFP-10G-LR, SFP+, 10G, Single-mode Module (1310nm, 10km, LC) |
Table 3 shows the comparison.
| Product Model | S5735-S24T4X | S5735-S24P4X | S5735-S32ST4X | S5735-S48T4X | S5735-S48P4X | S5735-S48S4X |
| Forwarding Performance | 96 Mpps | 96 Mpps | 108 Mpps | 132 Mpps | 132 Mpps | 132 Mpps |
| Switching Capacity | 128 Gbps/336 Gbps | 128 Gbps/336 Gbps | 144 Gbps/432 Gbps | 176 Gbps/432 Gbps | 176 Gbps/432 Gbps | 176 Gbps/432 Gbps |
| Fixed Ports | 24 x 10/100/1000BASE-T ports, 4 x 10 GE SFP+ ports | 24 x 10/100/1000BASE-T ports, 4 x 10 GE SFP+ ports | 24 x GE SFP ports, 8 x 10/100/1000BASE-T ports, 4 x 10 GE SFP+ ports | 48 x 10/100/1000BASE-T ports, 4 x 10 GE SFP+ ports | 48 x 10/100/1000BASE-T ports, 4 x 10 GE SFP+ ports | 48 x GE SFP ports, 4 x 10 GE SFP+ ports |
| PoE+ | Not supported | Supported | Not supported | Not supported | Supported |
Not supported |
|
|
