| MOQ: | 1 pieces |
| Price: | Contact us |
| Standard Packaging: | Original packaging box+Based on customer needs |
| Delivery Period: | 2-7 working days |
| In Stock | |
| Express, AIR, LCL, AIR, FCL, Express | |
| S5735-S48T4X | |
| Payment Method: | L/C, D/A, D/P, T/T, Western Union |
| Supply Capacity: | /pieces >=1 pieces |

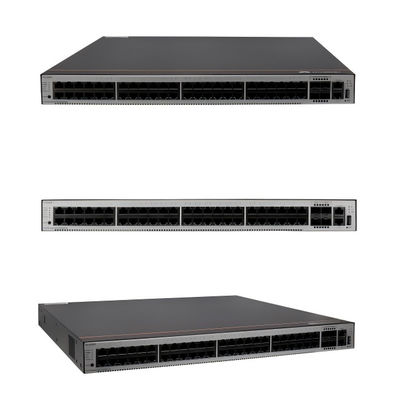

S5735-S48T4X is the Huawei S5735-S switch with 48 x 10/100/1000BASE-T ports, 4 x 10 GE SFP+ ports.
Huawei CloudEngine S5735-S is a series of standard gigabit access switches that provide 24–48 flexible all-GE downlink ports and four fixed 10 GE uplink ports. They are designed for enterprise campus network access and aggregation, as well as data center access.
Built on next-generation, high-performance hardware and with the Huawei Versatile Routing Platform (VRP), CloudEngine S5735-S switches boast advanced features, such as enhanced Layer 3 functionality, simplified O&M, flexible Ethernet networking, and mature IPv6 capabilities.
48 10/100/1000BASE-T ports, 4 10 GE SFP+ ports,
Forwarding performance is 132 Mpps
Switching capacity is 176 Gbps/432 Gbps
| 1 | Forty-eight 100/1000BASE-T ports | 6 | One PNP button |
| 2 | Four 10GE SFP+ ports
OMXD30000 OSX010000 OSX040N01 SFP-10G-ZR SFP-10G-USR |
7 | Ground screw |
| 3 | One console port | 8 | Power module slot 1 |
| 4 | One ETH management port | 9 | Power module slot 2 |
| 5 | One USB port |
S5735-S48T4X Specification |
|
| Forwarding Performance | 132 Mpps |
| Switching Capacity2 | 176 Gbps/432 Gbps |
| Fixed Ports | 48 x 10/100/1000BASE-T ports, 4 x 10 GE SFP+ ports |
| PoE+ | Not supported |
| MAC Features | IEEE 802.1d compliance MAC address auto-learning and aging Static, dynamic, and black hole MAC address entries Packet filtering based on source MAC addresses |
| VLAN Features | 4094 VLANs Guest VLAN, Voice VLAN GVRP MUX VLAN VLAN assignment based on MAC addresses, protocols, IP subnets, policies, and ports 1:1 and N:1 VLAN mapping |
| IP Routing | Static route, RIPv1/v2, RIPng, OSPF, OSPFv3, ECMP, IS-IS, IS-ISv6, BGP, BGP4+ |
| Super Virtual Fabric (SVF) | Plug-and-play SVF clients Automatic software package and patch loading to SVF clients One-click and automatic delivery of service configurations Independent SVF client operation |
| Interoperability | VBST (compatible with PVST/PVST+/RPVST) LNP (similar to DTP) VCMP (similar to VTP) |
Table 2 shows the recommended models.
| Model | Description |
| OMXD30000 | Huawei Optical Transceiver OMXD30000, SFP+, 10G, Multi-mode Module (850nm, 0.3km, LC) |
| OSX010000 | Optical Transceiver, SFP+, 10G, Single-mode Module (1310nm, 10km, LC) |
| SFP-GE-LX-SM1310 | Optical Transceiver, eSFP, GE, Single-mode Module (1310nm, 10km, LC) |
| OSXD22N00 | Optical Transceiver, SFP+, 10G, Multi-mode Module (1310nm, 0.22km, LC, LRM) |
| SFP-10G-USR | 10GBase-USR Optical Transceiver, SFP+, 10G, Multi-mode Module (850nm, 0.1km, LC) |
| OMXD30009 | Transceiver, QSFP+, 1310nm, 41.25Gbps, -7dBm, 2.3dBm, -11.5dBm, LC, SMF, 10 |
| SFP-10G-LR | Huawei Optical Transceiver SFP-10G-LR, SFP+, 10G, Single-mode Module (1310nm, 10km, LC) |
Table 3 shows the comparison.
| Product Model | S5735-S24T4X | S5735-S24P4X | S5735-S32ST4X | S5735-S48T4X | S5735-S48P4X | S5735-S48S4X |
| Forwarding Performance | 96 Mpps | 96 Mpps | 108 Mpps | 132 Mpps | 132 Mpps | 132 Mpps |
| Switching Capacity | 128 Gbps/336 Gbps | 128 Gbps/336 Gbps | 144 Gbps/432 Gbps | 176 Gbps/432 Gbps | 176 Gbps/432 Gbps | 176 Gbps/432 Gbps |
| Fixed Ports | 24 x 10/100/1000BASE-T ports, 4 x 10 GE SFP+ ports | 24 x 10/100/1000BASE-T ports, 4 x 10 GE SFP+ ports | 24 x GE SFP ports, 8 x 10/100/1000BASE-T ports, 4 x 10 GE SFP+ ports | 48 x 10/100/1000BASE-T ports, 4 x 10 GE SFP+ ports | 48 x 10/100/1000BASE-T ports, 4 x 10 GE SFP+ ports | 48 x GE SFP ports, 4 x 10 GE SFP+ ports |
| PoE+ | Not supported | Supported | Not supported | Not supported | Supported | Not supported |
|
|
| MOQ: | 1 pieces |
| Price: | Contact us |
| Standard Packaging: | Original packaging box+Based on customer needs |
| Delivery Period: | 2-7 working days |
| In Stock | |
| Express, AIR, LCL, AIR, FCL, Express | |
| S5735-S48T4X | |
| Payment Method: | L/C, D/A, D/P, T/T, Western Union |
| Supply Capacity: | /pieces >=1 pieces |
S5735-S48T4X is the Huawei S5735-S switch with 48 x 10/100/1000BASE-T ports, 4 x 10 GE SFP+ ports.
Huawei CloudEngine S5735-S is a series of standard gigabit access switches that provide 24–48 flexible all-GE downlink ports and four fixed 10 GE uplink ports. They are designed for enterprise campus network access and aggregation, as well as data center access.
Built on next-generation, high-performance hardware and with the Huawei Versatile Routing Platform (VRP), CloudEngine S5735-S switches boast advanced features, such as enhanced Layer 3 functionality, simplified O&M, flexible Ethernet networking, and mature IPv6 capabilities.
48 10/100/1000BASE-T ports, 4 10 GE SFP+ ports,
Forwarding performance is 132 Mpps
Switching capacity is 176 Gbps/432 Gbps
| 1 | Forty-eight 100/1000BASE-T ports | 6 | One PNP button |
| 2 | Four 10GE SFP+ ports
OMXD30000 OSX010000 OSX040N01 SFP-10G-ZR SFP-10G-USR |
7 | Ground screw |
| 3 | One console port | 8 | Power module slot 1 |
| 4 | One ETH management port | 9 | Power module slot 2 |
| 5 | One USB port |
S5735-S48T4X Specification |
|
| Forwarding Performance | 132 Mpps |
| Switching Capacity2 | 176 Gbps/432 Gbps |
| Fixed Ports | 48 x 10/100/1000BASE-T ports, 4 x 10 GE SFP+ ports |
| PoE+ | Not supported |
| MAC Features | IEEE 802.1d compliance MAC address auto-learning and aging Static, dynamic, and black hole MAC address entries Packet filtering based on source MAC addresses |
| VLAN Features | 4094 VLANs Guest VLAN, Voice VLAN GVRP MUX VLAN VLAN assignment based on MAC addresses, protocols, IP subnets, policies, and ports 1:1 and N:1 VLAN mapping |
| IP Routing | Static route, RIPv1/v2, RIPng, OSPF, OSPFv3, ECMP, IS-IS, IS-ISv6, BGP, BGP4+ |
| Super Virtual Fabric (SVF) | Plug-and-play SVF clients Automatic software package and patch loading to SVF clients One-click and automatic delivery of service configurations Independent SVF client operation |
| Interoperability | VBST (compatible with PVST/PVST+/RPVST) LNP (similar to DTP) VCMP (similar to VTP) |
Table 2 shows the recommended models.
| Model | Description |
| OMXD30000 | Huawei Optical Transceiver OMXD30000, SFP+, 10G, Multi-mode Module (850nm, 0.3km, LC) |
| OSX010000 | Optical Transceiver, SFP+, 10G, Single-mode Module (1310nm, 10km, LC) |
| SFP-GE-LX-SM1310 | Optical Transceiver, eSFP, GE, Single-mode Module (1310nm, 10km, LC) |
| OSXD22N00 | Optical Transceiver, SFP+, 10G, Multi-mode Module (1310nm, 0.22km, LC, LRM) |
| SFP-10G-USR | 10GBase-USR Optical Transceiver, SFP+, 10G, Multi-mode Module (850nm, 0.1km, LC) |
| OMXD30009 | Transceiver, QSFP+, 1310nm, 41.25Gbps, -7dBm, 2.3dBm, -11.5dBm, LC, SMF, 10 |
| SFP-10G-LR | Huawei Optical Transceiver SFP-10G-LR, SFP+, 10G, Single-mode Module (1310nm, 10km, LC) |
Table 3 shows the comparison.
| Product Model | S5735-S24T4X | S5735-S24P4X | S5735-S32ST4X | S5735-S48T4X | S5735-S48P4X | S5735-S48S4X |
| Forwarding Performance | 96 Mpps | 96 Mpps | 108 Mpps | 132 Mpps | 132 Mpps | 132 Mpps |
| Switching Capacity | 128 Gbps/336 Gbps | 128 Gbps/336 Gbps | 144 Gbps/432 Gbps | 176 Gbps/432 Gbps | 176 Gbps/432 Gbps | 176 Gbps/432 Gbps |
| Fixed Ports | 24 x 10/100/1000BASE-T ports, 4 x 10 GE SFP+ ports | 24 x 10/100/1000BASE-T ports, 4 x 10 GE SFP+ ports | 24 x GE SFP ports, 8 x 10/100/1000BASE-T ports, 4 x 10 GE SFP+ ports | 48 x 10/100/1000BASE-T ports, 4 x 10 GE SFP+ ports | 48 x 10/100/1000BASE-T ports, 4 x 10 GE SFP+ ports | 48 x GE SFP ports, 4 x 10 GE SFP+ ports |
| PoE+ | Not supported | Supported | Not supported | Not supported | Supported | Not supported |
