| MOQ: | 1 pieces |
| Price: | Contact us |
| Standard Packaging: | Original packaging box+Based on customer needs |
| Delivery Period: | 2-7 working days |
| In Stock | |
| Express, AIR, LCL, AIR, FCL, Express | |
| S5731-H24P4XC-AC | |
| Payment Method: | L/C, D/A, D/P, T/T, Western Union |
| Supply Capacity: | /pieces >=1 pieces |

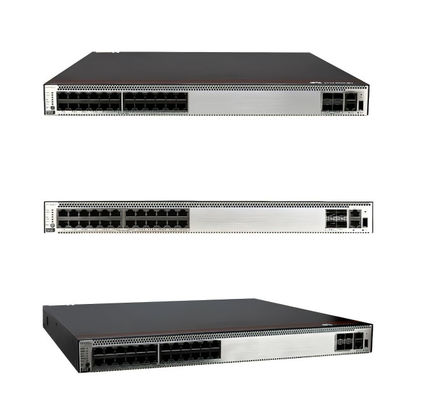

This Huawei switch comes with 24 10/100/1000BASE-T ports, 4 10GE SFP+ ports, PoE+, which is one of the Huawei S5731-H series switches. The S5731-H series switches are the next-generation intelligent gigabit fixed switches developed by Huawei.
The CloudEngine S5731-H builds on Huawei’s unified Versatile Routing Platform (VRP) and boasts various IDN features.
For example, the integrated wireless AC capabilities can manage up to 1,024 wireless APs; the free mobility feature ensures consistent user experience; the VXLAN functionality implements network virtualization, and built-in security probes support abnormal traffic detection, threat analysis even in encrypted traffic, and network-wide threat deception.
24 10/100/1000BASE-T ports, 4 10GE SFP+ ports
PoE+
Forwarding Performance is 125 Mpps
Switching capacity is 228 Gbps/672 Gbps
| 1 | Twenty-four PoE+ 10/100/1000BASE-T ports
SFP-1000Base-T |
7 | Ground screw |
| 2 | Four 10GE SFP+ ports
OMXD30000 OSX010000 |
8 | Rear card slot |
| 3 | One console port | 9 | Fan module slot 1 |
| 4 | One ETH management port | 10 | Fan module slot 2 |
| 5 | One USB port | 11 | Power module slot 1 |
| 6 | One PNP button | 12 | Power module slot 2 |
S5731-H24P4XC Specification |
|
| Fixed port | 24 x 10/100/1000Base-T (PoE+) ports, 4 x 10GE SFP+ ports |
| Dimensions (H x W x D) | 43.6 mm x 442 mm x 420mm |
| Chassis height | 1 U |
| Chassis weight (including packaging) | 8.6 kg |
| Extended slot | One extended slot, support 2 x 40GE, 8 x 10GE Base-T, 2 x 25GE SFP28 or 8 x 10GE SFP+ cards |
| Power supply type | 1000 W PoE AC (pluggable) |
| Rated voltage range | AC input (1000 W AC PoE): 100 V AC to 240 V AC, 50/60 Hz |
|
Maximum voltage range
|
• AC input (1000 W AC PoE): 90 V AC to 290 V AC, 45 Hz to 65 Hz • High voltage DC input (1000 W AC PoE): 190 V DC to 290 V DC (meeting 240 V high-voltage DC certification) |
| Maximum power consumption |
• 121 W (without PD) • 977 W (with PD, PD power consumption of 720 W) |
| Noise |
• Under normal temperature (sound power): 62.3dB (A) • Under high temperature (sound power): 71.8dB (A) • Under normal temperature (sound pressure): 52.8dB (A) |
| Operating temperature |
• 0-1800 m altitude: -5°C to 45°C • 1800-5000 m altitude: The operating temperature reduces by 1ºC every time the altitude increases by 220 m. |
| Storage temperature | -40°C to +70°C |
| Relative humidity | 5% to 95% (non-condensing) |
| Surge protection specification (service port) | Common mode: ±6 kV |
| Surge protection specification (power port) |
• Differential mode: ±6 kV • Common mode: ±6 kV |
| Heat dissipation |
Air cooling heat dissipation, intelligent speed adjustment, and pluggable fans
|
The Huawei S5731-H series switches provides these features and highlights:
* Enabling Networks to Be More Agile for Services
* Delivering Abundant Services More Agilely
* Providing Fine Granular Network Management More Agilely
* Comprehensive VPN Technologies
* Enhanced QoS Control Mechanism
* Flexible Ethernet Networking
* Various Security Control Methods
* Mature IPv6 Features
* Intelligent Stack (iStack)
* VXLAN Features
* PoE Power Supply
* Intelligent O&M
* Intelligent Upgrade
* Big Data Security Collaboration
* Open Programmability System (OPS)
Table 2 shows the recommended products.
| Model | Description |
| eSFP-GE-SX-MM850 | Optical Transceiver,eSFP,GE,Multi-mode Module(850nm,0.55km,LC) |
| S-SFP-GE-LH40-SM1550 | Optical Transceiver,eSFP,GE,Single-mode Module(1550nm,40km,LC) |
| SFP-GE-LX-SM1310 | Optical Transceiver,eSFP,GE,Single-mode Module(1310nm,10km,LC) |
| S-SFP-GE-LH40-SM1310 | Optical Transceiver,eSFP,GE,Single-mode Module(1310nm,40km,LC) |
| S-SFP-GE-LH80-SM1550 | Optical Transceiver,eSFP,GE,Single-mode Module(1550nm,80km,LC) |
| SFP-GE-ZBXU1 | Optical Transceiver,eSFP,GE,BiDi Single-mode Module(1490nm(Tx)/1570nm(Rx),80km,LC) |
| SFP-GE-LX-SM1490-BIDI | Optical Transceiver,eSFP,GE,BIDI Single-mode Module(TX1490/RX1310,10km,LC) |
| SFP-GE-ZBXD1 | Optical Transceiver,eSFP,GE,BIDI Single-mode Module(1570nm(Tx)/1490nm(Rx),80km,LC) |
| eSFP-GE-ZX100-SM1550 | Optical Transceiver,eSFP,GE,Single-mode Module(1550nm,100km,LC) |
| LE2MGSC40DE0 | Optical Transceiver,eSFP,GE,BIDI Single-mode Module(TX1310/RX1490,40km,LC) |
| SFP-GE-LX-SM1310-BIDI | Optical Transceiver,eSFP,GE,BIDI Single-mode Module(TX1310/RX1490,10km,LC) |
| LE2MGSC40ED0 | Optical Transceiver,eSFP,GE,BIDI Single-mode Module(TX1490/RX1310,40km,LC) |
| SFP-GE-BXU1-SC | 1000Base,BIDI Optical Transceiver,SFP,GE,Single-mode Module(TX1490nm/RX1310nm,10km,SC) |
Table 3 shows the comparison.
| Product Code | S5731-H24P4XC | S5731-H24T4XC | S5731-H48P4XC | S5731-H48T4XC |
| Fixed port | 24 x 10/100/1000Base-T (PoE+) ports, 4 x 10GE SFP+ ports | 24 x 10/100/1000Base-T ports, 4 x 10GE SFP+ ports | 48 x 10/100/1000Base-T (PoE+) ports, 4 x 10GE SFP+ ports | 48 x 10/100/1000Base-T ports, 4 x 10GE SFP+ ports |
| Dimensions (H x W x D) | 43.6 mm x 442 mm x420mm | 43.6 mm x 442 mm x420mm | 43.6 mm x 442 mm x420mm | 43.6 mm x 442 mm x420mm |
| Chassis height | 1 U | 1 U | 1 U | 1 U |
| Chassis weight (including packaging) | 8.6kg | 8.4 kg | 8.8kg | 8.55kg |
| Extended slot | One extended slot, support 2 x 40GE, 8 x 10GE Base-T, 2 x 25GE SFP28 or 8 x 10GE SFP+ cards | One extended slot, support 2 x 40GE, 8 x 10GE Base-T, 2 x 25GE SFP28 or 8 x 10GE SFP+ cards | One extended slot, support 2 x 40GE, 8 x 10GE Base-T, 2 x 25GE SFP28 or 8 x 10GE SFP+ cards | One extended slot, support 2 x 40GE, 8 x 10GE Base-T, 2 x 25GE SFP28 or 8 x 10GE SFP+ cards |
| Power supply type | 1000 W PoE AC (pluggable) |
600 W AC (pluggable) 150 W AC (pluggable) 1000 W DC (pluggable) |
1000 W PoE AC (pluggable) |
600 W AC (pluggable) 150 W AC (pluggable) 1000 W DC (pluggable) |
| Rated voltage range | AC input (1000 W AC PoE): 100 V AC to 240 V AC, 50/60 Hz |
AC input (600 W AC ): 100 V AC to 240 V AC, 50/60 Hz AC input (150 W AC ): 100 V AC to 240 V AC, 50/60 Hz DC input (1000 W DC): -48 VDC to -60 V DC |
AC input (1000 W AC PoE): 100 V AC to 240 V AC, 50/60 Hz |
AC input (600 W AC ): 100 V AC to 240 V AC, 50/60 Hz AC input (150 W AC ): 100 V AC to 240 V AC, 50/60 Hz DC input (1000 W DC): -48 VDC to -60 V DC |
| Maximum power consumption |
121 W (without PD) 977 W (with PD, PD power consumption of 720 W) |
114 W |
132W (without PD) 1750W (with PD, PD power consumption of 1440 W) |
124 W |
|
|
