| MOQ: | 1 pieces |
| Price: | Contact us |
| Standard Packaging: | Original packaging box+Based on customer needs |
| Delivery Period: | 2-7 working days |
| In Stock | |
| Express, AIR, LCL, AIR, FCL, Express | |
| S5732-H24S6Q-AC | |
| Payment Method: | L/C, D/A, D/P, T/T, Western Union |
| Supply Capacity: | /pieces >=1 pieces |

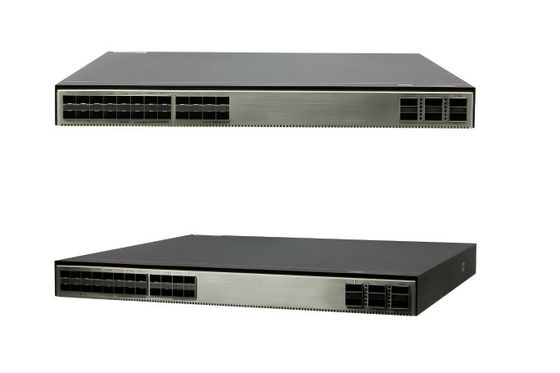

This Huawei switch comes with 20 GE SFP ports, 4 10GE SFP+ ports, 6 40GE QSFP+ ports, which is one of the S5732-H series switches.
The Huawei Cloud Engine S5732-H series switches are the next-generation enhanced all-optical Ethernet switches developed by Huawei. The CloudEngine S5732-H builds on Huawei’s unified Versatile Routing Platform (VRP) and boasts various IDN features.
20 GE SFP ports
4 10GE SFP+ ports
6 40GE QSFP+ ports
Forwarding performance is 450/522 MPPS
Switching capacity is 2.4Tbps/24 Tbps
| 1 | Twenty 1000BASE-X ports
eSFP-GE-SX-MM850 eSFP-GE-ZX100-SM1550 LE2MGSC40DE0 LE2MGSC40ED0 |
9 | One PNP button |
| 2 | Four 10GE SFP+ ports
OMXD30000 OSX010000 |
10 | Fan module slot 1 |
| 3 | Six 40GE QSFP+ optical ports
QSFP-40G-eSR4 QSFP-40G-iSR4 QSFP-40G-eSDLC-PAM QSFP-40G-LR4 QSFP-40G-SDLC-PAM |
11 | Fan module slot 2 |
| 4 | Ground screw | 12 | Fan module slot 3 |
| 5 | SSD card slot | 13 | Fan module slot 4 |
| 6 | One ETH management port | 14 | Power module slot 1 |
| 7 | One USB port | 15 | Power module slot 1 |
S5732-H24S6Q Specification |
|
| Fixed port | 20 x GE SFP ports, 4 x 10GE SFP+ ports, 6 x 40GE QSFP+ ports |
| Dimensions (W x D x H) | 442 mm x 420 mm x 43.6 mm |
| Chassis height | 1 U |
| Chassis weight (including packaging) | 8.9 kg |
| Power supply type |
• 600 W AC (pluggable) • 1000 W DC (pluggable) |
|
Maximum voltage range
|
• AC input (600 W AC ): 90 V AC to 290 V AC, 45 Hz to 65 Hz • High-voltage DC input (600 W AC): 190 V DC to 290 V DC (meeting 240 V high-voltage DC certification) • DC input (1000 W DC): -36 V DC to -72V DC |
| Maximum power consumption | 229 W |
| Noise |
• Under normal temperature (sound power): 65dB (A) • Under high temperature (sound power): 88dB (A) • Under normal temperature (sound pressure): 52dB (A) |
|
Operating temperature
|
• 0-1800 m altitude: -5°C to +45°C • 1800-5000 m altitude: The operating temperature reduces by 1ºC every time the altitude increases by 220 m. |
| Storage temperature | -40℃ to +70℃ |
| Relative humidity | 5% to 95% (non-condensing) |
|
Surge protection specification (power port)
|
• AC power port: ±6 kV in differential mode, ±6 kV in common mode • DC power port: ±2 kV in differential mode, ±4 kV in common mode |
| Heat dissipation | Air cooling heat dissipation, intelligent speed adjustment, and pluggable fans |
The S5732-H series switches provides these features and highlights:
* Enabling Networks to Be More Agile for Services
* Delivering Abundant Services More Agilely
* Providing Fine Granular Network Management More Agilely
* Comprehensive VPN Technologies
* Flexible Ethernet Networking
* Various Security Control Methods
* Mature IPv6 Features
* Intelligent Stack (iStack)
* VXLAN Features
* Big Data Security Collaboration
* Intelligent O&M
* Intelligent Upgrade
* Open Programmability System (OPS)
Table 2 shows the recommended products.
| Model | Description |
| PAC600S12-CB | 600W AC Power Module(Back to Front, Power panel side exhaust) |
| eSFP-GE-SX-MM850 | Optical Transceiver,eSFP,GE,Multi-mode Module(850nm,0.55km,LC) |
| S-SFP-GE-LH40-SM1550 | Optical Transceiver,eSFP,GE,Single-mode Module(1550nm,40km,LC) |
| SFP-GE-LX-SM1310 | Optical Transceiver,eSFP,GE,Single-mode Module(1310nm,10km,LC) |
| S-SFP-GE-LH40-SM1310 | Optical Transceiver,eSFP,GE,Single-mode Module(1310nm,40km,LC) |
| S-SFP-GE-LH80-SM1550 | Optical Transceiver,eSFP,GE,Single-mode Module(1550nm,80km,LC) |
| SFP-GE-ZBXU1 | Optical Transceiver,eSFP,GE,BiDi Single-mode Module(1490nm(Tx)/1570nm(Rx),80km,LC) |
| SFP-GE-LX-SM1490-BIDI | Optical Transceiver,eSFP,GE,BIDI Single-mode Module(TX1490/RX1310,10km,LC) |
| eSFP-GE-ZX100-SM1550 | Optical Transceiver,eSFP,GE,Single-mode Module(1550nm,100km,LC) |
| SFP-GE-ZBXD1 | Optical Transceiver,eSFP,GE,BIDI Single-mode Module(1570nm(Tx)/1490nm(Rx),80km,LC) |
| LE2MGSC40DE0 | Optical Transceiver,eSFP,GE,BIDI Single-mode Module(TX1310/RX1490,40km,LC) |
| LE2MGSC40ED0 | Optical Transceiver,eSFP,GE,BIDI Single-mode Module(TX1490/RX1310,40km,LC) |
| SFP-GE-LX-SM1310-BIDI | Optical Transceiver,eSFP,GE,BIDI Single-mode Module(TX1310/RX1490,10km,LC) |
| SFP-GE-BXU1-SC | 1000Base,BIDI Optical Transceiver,SFP,GE,Single-mode Module(TX1490nm/RX1310nm,10km,SC) |
Table 3 shows the comparison.
| Product Code | S5732-H24S6Q | S5732-H48S6Q |
| Fixed port | 20 x GE SFP ports, 4 x 10GE SFP+ ports, 6 x 40GE QSFP+ ports | 44 x GE SFP ports, 4 x 10GE SFP+ ports, 6 x40GE QSFP+ ports |
| Dimensions (W x D x H) | 442 mm x 420 mm x 43.6 mm | 442 mm x 420 mm x 43.6 mm |
| Chassis height | 1 U | 1 U |
| Chassis weight (including packaging) | 8.9 kg | 9.2 kg |
| Power supply type |
600 W AC (pluggable) 1000 W DC (pluggable) |
600 W AC (pluggable) 1000 W DC (pluggable) |
| Maximum power consumption | 229 W | 255W |
|
Surge protection specification (power port)
|
AC power port: 6 kV in differential mode, 6 kV in common mode DC power port: 2 kV in differential mode, 4 kV in common mode |
AC power port: 6 kV in differential mode, 6 kV in common mode DC power port: 2 kV in differential mode, 4 kV in common mode |
|
|
