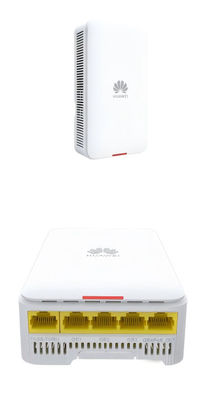

Huawei AirEngine 5761-12W is a Wi-Fi 6 (802.11ax) wall plate access point (AP). It can simultaneously provide services on 2.4 GHz (2x2 MIMO) and 5 GHz (2x2MIMO) frequency bands, achieving a device rate of up to 1.775Gbps. Built-in smart antennas of the AP enable always-on Wi-Fi signals for users, significantly enhancing users' wireless experiences. These strengths make AirEngine 5761-12W ideal for scenarios requiring high bandwidth and high-quality network experience, such as hotels,wards and dormitories.
⚫ As the latest generation Wi-Fi standards of IEEE 802.11, 802.11ax improves user experience in high-density access scenarios and supports 2.4 GHz and 5 GHz frequency bands.
⚫ MU-MIMO on both the 2.4 GHz and 5 GHz frequency bands, allowing an AP to transmit data to and receive data from multiple STAs simultaneously and multiplying the utilization of radio spectrum resources.
⚫ 1024QAM modulation, improving data transmission efficiency by 25% compared with 802.11ac (256QAM).
⚫ OFDMA scheduling enables multiple users to receive and send information at the same time, reducing latency and improving network efficiency.
⚫ Spatial reuse (SR) technology uses basic service set (BSS) coloring to enable APs and STAs to distinguish BSSs, minimizing co-channel interference.
⚫ The target wake time (TWT) allows APs and STAs to negotiate the sleep and wake time with each other, thereby improving the battery life of the STAs.
Smart antenna array technology
The AP equipped with the dual-band smart antenna array and intelligent switchover algorithm can intelligently detect the application environment and access density, achieving more accurate signal coverage and interference suppression. This design helps provide the optimal signal coverage direction and signal quality for each mobile access STA, bringing seamless and smooth wireless network access experience to the users.
New Wi-Fi 6 technologies such as 1024QAM modulation, more subcarriers, and more efficient Symbol scheduling enable the 2.4 GHz radio rate to reach 0.575 Gbps, the 5 GHz radio rate to reach 1.2 Gbps, and the device rate to reach 1.775 Gbps.
| AirEngine 5761-12W | Technicial Specification |
| Dimensions (H x W x D) | 38 x 86 x 160 mm |
| Weight | 0.3KG |
| Interface type |
Up link: 1 x 10M/100M/1GE (RJ-45)
Down link: 4 x 10M/100M/1GE (RJ-45)
Pass through: 2 x RJ45
1 x USB
|
| Bluetooth | BLE 5.2 |
| Power input |
⚫ DC: 43.2V to 57.6V
⚫ PoE power supply: In compliance with 802.3at/af
|
| PoE out |
Support PoE out(GE4 supports 11W PSE Power Budget) |
| Maximum number of users |
≤ 1024 (512/Radio) |
| Maximum transmit power |
2.4GHz: 23dBm (combined power) 5GHz: 23dBm (combined power) |
Huawei AirEngine 5761-12W is a Wi-Fi 6 (802.11ax) wall plate access point (AP). It can simultaneously provide services on 2.4 GHz (2x2 MIMO) and 5 GHz (2x2MIMO) frequency bands, achieving a device rate of up to 1.775Gbps. Built-in smart antennas of the AP enable always-on Wi-Fi signals for users, significantly enhancing users' wireless experiences. These strengths make AirEngine 5761-12W ideal for scenarios requiring high bandwidth and high-quality network experience, such as hotels,wards and dormitories.
|
|
