Innovate at scale with challenging and emerging workloads
The Dell EMC PowerEdge R750xa, powered by the 3rd Generation Intel® Xeon® Scalable processors, is a dual-
socket/2U rack server that delivers outstanding performance for the most demanding emerging and intensive GPU
workloads. It supports 8 channels/CPU, up to 32 DDR4 DIMMs @ 3200 MT/s DIMM speed. In addition, to address
substantial throughput improvements the PowerEdge R750xa supports PCIe Gen 4 and up to 8 SAS/SATA SSD
or NVMe drives. With one platform that supports all of the PCIe GPUs in the PowerEdge portfolio, this makes the
PowerEdge R750xa the ideal server for emerging workloads including AI-ML/DL Training and Inferencing, High-
Performance Computing and virtualization environments
| Feature | Technical Specifications | |
|
Processor |
Up to two 3rd Generation Intel Xeon Scalable processors, with up to 40 cores per processor |
|
|
Memory |
• 32 DDR4 DIMM slots, supports RDIMM 2 TB max or LRDIMM 4 TB max, speeds up to 3200 MT/s |
|
|
Storage controllers |
• Internal controllers: PERC H745, HBA355I, S150, H345, H355, H755, H755N |
|
|
Drive Bays |
Front bays: |
|
|
Power Supplies |
• 1400 W Platinum AC/240 HVDC |
|
|
Cooling Options |
• Air cooling, optional processor liquid cooling |
|
|
Fans |
• System fan (60 x 76 mm) |
|
|
Dimensions |
• Height – 86.8 mm (3.41 inches) |
|
|
Form Factor |
2U rack server |
|
|
Embedded Management |
• iDRAC9 |
|
|
Bezel |
Optional LCD bezel or security bezel |
|
|
OpenManage Software |
• OpenManage Enterprise |
|
|
Mobility |
OpenManage Mobile |
|
|
Integrations and Connections |
OpenManage Integrations |
OpenManage Connections |
|
Security |
• Cryptographically signed firmware |
|
|
Embedded NIC |
2 x 1 GbE LOM |
|
|
Network Options |
1 x OCP 3.0 (x8 PCIe lanes) |
|
|
GPU Options |
Up to four single-width 150 W or four double-width 300 W in the front and two single-width 75 W at the rear |
|
|
Ports |
Front Ports |
Rear Ports |
|
Internal Ports |
||
|
PCIe |
Up to 8 x PCIe Gen4 slots (up to 6 x16 + 2 x8) |
|
|
Operating System and Hypervisors |
• Canonical Ubuntu Server LTS |
|
Chassis views and features
Front view of the system
Figure 1. Front view of the R750xa (front riser slot numbering)
Figure 2. Front view of the R750xa with x8 SAS/SATA SSD on x8 NVMe
Figure 3. Front view of the R750xa with x6 NVMe direct attached
Figure 4. Front view of the R750xa with x8 Universal slots (slots 4-7 are universal)
Rear view of the system
There are only 4 storage configurations in the R750xa, which comprise two backplane options (config 0, config1):
1. Up to 8x SAS/SATA SSD in a RAID config
2. Up to 8x NVMe in a RAID config
3. Up to 6x NVMe direct attach
4. Up to 4x SAS/SATA SSD in a RAID config + Up to 4x NVMe direct attach
Figure 5. Rear view of the R750xa
Figure 6. Rear riser slot numbering
Figure 7. Rear view of the system with riser config 0: direct attach NVMe cards (either 6x NVMe direct attach or 4x
NVMe direct attach + 4 Universal slots)
Figure 8. Rear view of the system with riser config 1: SAS/SATA SSD only or NVMe RAID (not direct attach)

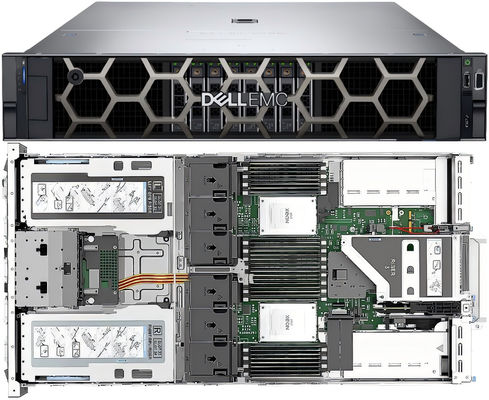

Inside the system
Figure 9. Inside the system R750xa Shroud +R3 riser
|
|
