| MOQ: | 1 |
| Price: | $1 |
| In stock | |
| Express, AIR | |
| Dell PowerEdge R760XS | |
| Payment Method: | L/C, D/A, D/P, T/T, Western Union |
The new Dell PowerEdge R760xs is a 2U, two-socket rack server. Buy the best fit in scalable performance and large storage capability with this purpose-built 2U system. Focused on delivering the latest technology to power the most popular applications and workloads used by businesses today, including virtual desktop infrastructure (VDI), virtual machines (VMs), and software-defined storage (SDS). All delivered in a thoughtfully crafted platform that will provide balanced compute that fits in your current infrastructure.
• Add up to two 5th generation Intel® Xeon® Scalable processors with up to 28 cores and 4th generation Intel®
The new Dell EMC PowerEdge R550 is a 2U, dual-socket server that offers the best value for organizations seeking the latest processing, I/O, and storage capabilities. It lets you:
• Add additional power and cores: It offers up to two 3rd generation Intel Xeon Scalable processors with up to 24 cores per socket
• Choose faster memory: Supports up to 16 DDR4 RDIMMS at 2933 MT/sec
• Improve throughput and reduce latency: With up to 3 PCIe Gen4 slots and 1 PCIe Gen3
• Include flexible storage: Supports up to 16x 2.5” SAS/SATA hard drives or SSDs or up to 8x 3.5” SAS/SATA hard drives or SSDs
• Support light duty virtualization and small IT infrastructure workloads.
Security is integrated into every phase of the PowerEdge lifecycle, including protected supply chain and factory-to-site integrity assurance. Silicon-based root of trust anchors end-to-end boot resilience while Multi-Factor Authentication (MFA) and role-based access controls ensure trusted operations.
The Dell OpenManage™ systems management portfolio delivers a secure, efficient, and comprehensive solution for PowerEdge servers. Simplify, automate and centralize one-to-many management with the OpenManage Enterprise console and iDRAC.
| R760xs | Technical Specification | |
| Processor | Up to two 5th Generation Intel Xeon Scalable processor with up to 28 cores and 4th Generation Intel Xeon Scalable processor with up to 32 cores per processor | |
| Memory |
• 16 DDR5 DIMM slots, supports RDIMM 1.5 TB max, speeds up to 5200 MT/s, supports registered ECC DDR5 DIMMs only
|
|
|
Storage controllers
|
• Internal Controllers: PERC H965i, PERC H755, PERC H755N, PERC H355, HBA355i, HBA465i
• Internal Boot: Boot Optimized Storage Subsystem (BOSS-N1): HWRAID 1, 2 x M.2 NVMe SSDs or USB
• External HBA (non-RAID): HBA355e; Software RAID: S160
|
|
| Drive bays |
Front bays:
• 0 drive bay
• Up to 8 x 3.5-inch SAS/SATA (HDD/SSD) max 192 TB
• Up to 12 x 3.5-inch SAS/SATA (HDD/SSD) max 288 TB
• Up to 8 x 2.5-inch SAS/SATA/NVMe (HDD/SSD) max 122.88 TB
• Up to 16 x 2.5-inch SAS/SATA (HDD/SSD) max 121.6 TB
• Up to 16 x 2.5-inch (SAS/SATA) + 8 x 2.5-inch (NVMe)
(HDD/SSD) max 244.48 TB
|
Rear bays:
• Up to 2 x 2.5-inch SAS/SATA/NVMe (HDD/SSD) max 30.72 TB
(supported only with 12 x 3.5-inch SAS/SATA HDD/SSD
configuration)
|
| Hot swap Redundant Power Supplies |
• 1800 W Titanium 200—240 VAC or 240 VDC • 1400 W Titanium 100—240 VAC or 240 VDC • 1400 W Platinum 100—240 VAC or 240 VDC • 1400 W Titanium 277 VAC or HVDC (HVDC stands for HighVoltage DC, with 336V DC) • 1100 W Titanium 100—240 VAC or 240 VDC
|
• 1100 W -(48V — 60V) DC • 800 W Platinum 100—240 VAC or 240 VDC • 700 W Titanium 200—240 VAC or 240 VDC • 600 W Platinum 100—240 VAC or 240 VDC |
| Fans |
• Standard (STD) fans/High performance Silver (HPR) fans/ High performance Gold (VHP) fans, Up to 6 hot swappable fans |
|
| Dimensions |
• Height – 86.8 mm (3.41 inches)
• Width – 482 mm (18.97 inches)
|
• Depth – 707.78 mm (27.85 inches) – without bezel
721.62 mm (28.4 inches) – with bezel
• Weight – Max 28.6 kg (63.0 lbs.)
|
| Form Factor | 2U rack server | |
| Embedded Management |
• iDRAC9
• iDRAC Direct
• iDRAC RESTful API with Redfish
|
• iDRAC Service Module
• Quick Sync 2 wireless module
|
| Ports |
Front Ports:
• 1 x iDRAC Direct (Micro-AB USB) port, 1 x USB 2.0, 1 x VGA
Internal Ports: 1 x USB 3.0 (optional)
|
Rear Ports
• 1 x Dedicated iDRAC Ethernet port, 1 x USB 2.0, 1 x USB 3.0, 1 x VGA, 1 x Serial (optional)
|
|
Internal Ports • 1 x USB 3.0 (optional) |
||
| PCIe |
• 1 CPU Configuration: Up to 4 PCIe slots (2 x8 Gen5, 1 x16 Gen4, 1 x8 Gen4)
• 2 CPU configuration: Up to 6 PCIe slots (2 x16 Gen5, 3 x16 Gen4, 1 x8 Gen4)
|
|
The Dell PowerEdge R760xs is Dell’s latest two-socket, rack server that is designed to run complex workloads using highly scalable memory, I/O, and network options. The systems feature the 4thand 5th Gen Intel® Xeon® Scalable Processor (Socket E1/LGA4677-1), up to 16 DIMMs, PCI Express® (PCIe) 5.0 enabled expansion slots , and a broad selection of network interface technologies.

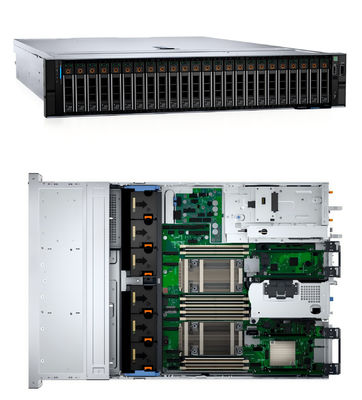

Front view of the system
Figure 1. Front view of 16 x 2.5-inch SAS/SATA + 8 x 2.5-inch NVMe drive system
Figure 2. Front view of 16 x 2.5-inch SAS/SATA drive system
Figure 3. Front view of 8 x 2.5-inch SAS/SATA or NVMe drive system
Figure 4. Front view of 12 x 3.5-inch SAS/SATA drive system
Figure 5. Front view of 8 x 3.5-inch SAS/SATA drive system
Figure 6. Front view of no backplane configuration (0 drive system)
Figure 11. Rear view of the system with no riser and one CPU
Figure 12. Rear view of the system with no riser and two CPUs
Figure 13. Rear view of the system with Riser 1c
Figure 14. Rear view of the system with Riser 1d
Figure 15. Inside the system without rear drive and riser
|
|
