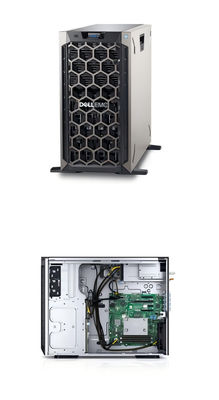

Dual Redundant Mini Server Dell Rackmount NAS Server PowerEdge T340
  • name
  • name
  • name
  • name
  • name

Dual Redundant Mini Server Dell Rackmount NAS Server PowerEdge T340

MOQ: 1
Price: $1
In stock
Express, AIR
Dell PowerEdge T340
Payment Method: L/C, D/A, D/P, T/T, Western Union
Details Information
Product Description
Detail Information
Processor:
1 X Intel Xeon E-2136 3.3GHz Six-Core CPU
RAM:
4x DDR4 DIMM Slots
HDD:
4 X 8TB SAS 7.2k 3.5" 12Gbps Dell Enterprise Class Hot-Swap HDDs
Power Supply:
Dual Redundant 495W Hot-Swap Power Supplies (2xPSUs)
Form Factor:
Tower Server
Warranty:
3 Years
Highlight:

Rackmount NAS mini server dell

,

PowerEdge T340 mini server dell

,

PowerEdge T340 rackmount nas server

Product Description

PowerEdge T340

The PowerEdge T340 tower server It is a reliable, easy to manage, and scalable one-socket server. The PowerEdge T340 helps you share and connect quickly across your organization to drive business results.

Operate reliably and scale without limits

The PowerEdge T340 is your reliable server that allows you to collaborate and grow as you scale.
• Drive your business forward with improved performance due to 100% more cores with Intel® Xeon® E-2200 processors,
11% increase in memory speed, and 20% more PCIe lanes.2
• Scale with 17% more storage capacity.3
• Operate reliably with up to 8 hot-plug HDD’s or SSD’s and redundant power supplies.
• Get set up as much as 66% faster with our ProDeploy suite of services

Intuitive systems management with intelligent automation

PowerEdge servers with embedded iDRAC offer agent-free management right out of the box, delivering smart automation of routine
tasks. The T340 is easily managed which frees up time for work priorities.
• Simplify management with the OpenManage Enterprise console, with customized reporting and automatic discovery.
• Easily manage multiple remote servers via the intuitive general user interface with iDRAC9 Group Manager or upgrade
to OpenManage Enterprise.
• Conveniently receive data alert notifications and access hardware remotely anywhere with OpenManage Mobile.
• Resolve issues with up to 72% less IT effort using automated proactive and predictive technology from ProSupport Plus and
SupportAssist

Keep your data safe

Every PowerEdge server is made with a cyber-resilient architecture, building security into the server’s entire life cycle. The T340 uses
these new security features so you can reliably and securely deliver the right data to your customers. Dell EMC considers each part
of system security, from design to end-of-life, to ensure trust and deliver worry-free, secure servers.
• Keep your data safe by automatically saving it with software RAID.
• Maintain data safety with cryptographically-signed firmware packages
and Secure Boot.
• Protect your server from malicious malware with iDRAC9 Server Lockdown mode
(requires Enterprise or Datacenter license).
• Wipe all data from storage media quickly and securely with System Erase
System Erase.
Dual Redundant Mini Server Dell Rackmount NAS Server PowerEdge T340 0
T340 Technical Specification
Processor 1 processor from the following: Intel® Xeon® E-2200 product family, Intel Pentium®, Intel Core i3®, Intel Celeron
Memory
4x DDR4 DIMM slots, supports UDIMMs, speeds up to 2666MT/s, 64GB max. supports registered ECC.

Storage

controllers


Internal controllers: PERC H730P, H330, HBA330 (non-RAID)
Software RAID: PERC S140
External HBAs: 12Gbps SAS HBA (non-RAID)
Boot Optimized Storage Subsystem (BOSS): 2x M.2 240GB (RAID 1 or No RAID), 1x M.2 240GB (No RAID only)
Internal Dual SD Module
Drive bays
Up to 8 x 3.5” hot-pluggable bays (also supports 2.5” HDD in 3.5” hybrid drive carrier
Power supplies

2x Hot-Plug-Redundant 495W PSUs or Single Cabled 350W PSU
Dimensions Form factor: Tower server
Chassis height: 430.3mm (16.94 in)
Chassis width: 218mm (8.58 in)
Chassis depth: 603 mm (23.7 in)
Note: These metrics do not include PSU handle, bezel, or tower foot
Chassis weight: 26 kg (55.67 lb.)
Embedded management
iDRAC9 iDRAC Direct
I/O & Ports
Networking Options:
2 X 1GbE LOM
Front Ports: 1x USB 3.0, 1x iDRAC micro USB 2.0
management port
Rear Ports: 2x USB 3.0, 4x USB 2.0, VGA, serial connector Internal USB: 1x internal USB 3.0
4 x PCIe Slots:
1x8 Gen3 (x16 connector) FH/HL
1x8 Gen3 (x8 connector) FH/HL
1x4 Gen3 (x8 connector) FH/HL
1x1 Gen3 (x1 connector) FH/HL



Product Overview

The Dell EMC PowerEdge T340 is the reliable, easy to manage, and scalable 1-socket tower server for growing businesses and remote offices/ branch offices.

Chassis views

Front view of the system

Dual Redundant Mini Server Dell Rackmount NAS Server PowerEdge T340 1

Figure 1. Front view of 8 x 3.5-inch drive system
1. Power button                                                     2. Information tag
3. System health and system ID indicator             4. USB 3.0 port
5. iDRAC direct micro USB port                            6. Optical drive (optional)
7. Drive (8)



Rear view of the system

Dual Redundant Mini Server Dell Rackmount NAS Server PowerEdge T340 2

Figure 2. Rear view of 8 x 3.5-inch drive system
1. Power supply unit (PSU 1)                                         2. Power supply unit (PSU 2)
3. USB 2.0 port (4)                                                         4. System Identification button
5. USB 3.0 port (2)                                                         6. iDRAC dedicated NIC port
7. VGA port                                                                    8. Serial port
9. NIC port (Gb1)                                                          10. NIC port (Gb2)
11. PCIe expansion card slots (4)
Dual Redundant Mini Server Dell Rackmount NAS Server PowerEdge T340 3
Figure 3. Rear view of 4 x 3.5-inch drive system
1. Cabled power supply unit (PSU)                                     2. USB 2.0 port (4)
3. System identification button                                            4. USB 3.0 port (2)
5. iDRAC dedicated NIC port                                              6. VGA port
7. Serial port                                                                       8. NIC port (Gb1)
9. NIC port (Gb2)                                                              10. PCIe expansion card slots (4)


Inside the system

Dual Redundant Mini Server Dell Rackmount NAS Server PowerEdge T340 4

Figure 4. Inside the system with cabled power supply unit (PSU)
1. Optical drive or tape drive                                                              2. Power supply unit (cabled)
3. PCIe Expansion card latch (4)                                                       4. PCIe Expansion card slots (4)
5. Intrusion switch                                                                              6. Air shroud
7. Drive backplane
Dual Redundant Mini Server Dell Rackmount NAS Server PowerEdge T340 5
Figure 5. Inside the system with redundant power supply unit (PSU)
1. Optical drive or tape drive                                                                         2. Power interposer board
3. PCIe Expansion card latch (4)                                                                  4. PCIe Expansion card slots (4)
5. Intrusion switch                                                                                          6. Fan
7. Memory module socket (4)                                                                        8. Processor and heat sink
9. System board                                                                                            10. Drive backplane
