| MOQ: | 1 piece |
| Price: | Contact us |
| Standard Packaging: | Original packaging box+Based on customer needs |
| Delivery Period: | 2-7 working days |
| In Stock | |
| Express, AIR | |
| Dell Server R740 | |
| Payment Method: | L/C, D/A, D/P, T/T, Western Union |
| Supply Capacity: | /pieces >=2 pieces |
The PowerEdge R740 was designed to accelerate application performance leveraging accelerator cards and storage scalability. The 2-socket, 2U platform has the optimum balance of resources to power the most demanding environments.
| R740 | Technical Specification | |
| Processor | Up to two 2nd Generation Intel® Xeon® Scalable processors, up to 28 cores per processor | |
| Memory |
24 DDR4 DIMM slots, Supports RDIMM /LRDIMM, speeds up to 2933MT/s, 3TB max
Up to 12 NVDIMM, 192 GB Max
Up to 12 Intel® Optane™ DC persistent memory PMem, 6.14TB max (7.68TB max with PMem + LRDIMM)
Supports registered ECC DDR4 DIMMs only
|
|
| Storage controllers |
Internal Controllers: PERC H330, H730P, H740P, HBA330
External Controllers: H840, 12 Gbps SAS HBA
Software RAID:S140
Boot Optimized Storage Subsystem (BOSS):HWRAID 2 x M.2 SSDs 240GB, 480GB
Internal Dual SD Module1
|
|
| Storage | Front drive bays: Up to 16 x 2.5” SAS/SATA (HDD/SSD) max 122.88TB or up to 8 x 3.5” SAS/SATA HDD max 128TB Optional DVD-ROM, DVD+RW | |
| Power Supplies |
Titanium 750W, Platinum 495W, 750W,
750W 240VDC,2
1100W,
1100W 380VDC2
1600W, 2000W and 2400W, Gold 1100W -48VDC Hot plug power supplies with full redundancy
Up to 6 hot plugs fans with full redundancy
|
|
| Form Factor | 2U rack server | |
| Embedded Management |
iDRAC9, iDRAC Direct, iDRAC RESTful with Redfish, Quick Sync 2 wireless module (optional)
|
|
| I/O & Ports |
Network daughter card options
4 x 1GbE or 2 x 10GbE + 2 x 1GbE or 4 x 10GbE or 2 x 25GbE
Front ports: 1 x Dedicated iDRAC Direct Micro-USB, 2 x USB 2.0, 1 x USB 3.0 (optional), 1 x VGA
Rear ports: 1 x Dedicated iDRAC network port, 1 x Serial, 2 x USB 3.0, 1 x VGA
Video card: 2 x VGA
Riser options with up to 8 PCIe Gen 3 slots, maximum of 4 x 16 slots
|
|
The Dell EMC PowerEdge R740 are two socket, 2U rack servers designed to run complex workloads using highly scalable memory, I/O capacity and network options. The R740 features the 2nd Generation Intel® Xeon® Scalable processor family, up to 24 DIMMs, PCI Express® (PCIe) 3.0 enabled expansion slots, and a choice of network interface technologies to cover NIC and rNDC. The PowerEdge R740 is a general-purpose platform capable of handling demanding workloads and applications, such as data warehouses, e-commerce, databases, and high-performance computing (HPC). The PowerEdge R740xd adds extraordinary storage capacity options, making it well-suited for data- intensive applications that require greater storage, while not sacrificing I/O performance.
R740 front views
The R740 supports up to 16 x 2.5 -inch or up to 8 x 3.5 -inch front-accessible, hot-plug hard drives that are secured by a removable front bezel. R740 Front view - 8 x 2.5 -inch hard drive configuration
R740 Front view - 16 x 2.5 -inch hard drive configuration
R740 Front view - 8 x 3.5 -inch hard drive configuration
The R740 back panel includes PSUs, Ethernet connectors, PCIe slots and many other features described in this guide R740 Rear view - with 8x PCIe slots available
R740 Rear view - with 4x PCIe slots available with riser 2 and riser 3 blanks

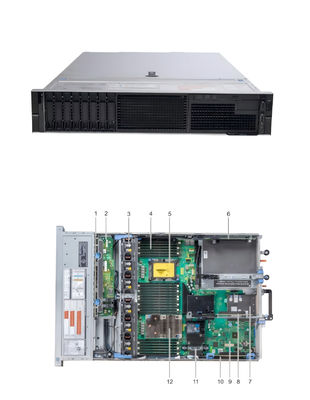

Figure 1. R740 internal chassis view
11. NVDIMM-N battery
|
|
| MOQ: | 1 piece |
| Price: | Contact us |
| Standard Packaging: | Original packaging box+Based on customer needs |
| Delivery Period: | 2-7 working days |
| In Stock | |
| Express, AIR | |
| Dell Server R740 | |
| Payment Method: | L/C, D/A, D/P, T/T, Western Union |
| Supply Capacity: | /pieces >=2 pieces |
The PowerEdge R740 was designed to accelerate application performance leveraging accelerator cards and storage scalability. The 2-socket, 2U platform has the optimum balance of resources to power the most demanding environments.
| R740 | Technical Specification | |
| Processor | Up to two 2nd Generation Intel® Xeon® Scalable processors, up to 28 cores per processor | |
| Memory |
24 DDR4 DIMM slots, Supports RDIMM /LRDIMM, speeds up to 2933MT/s, 3TB max
Up to 12 NVDIMM, 192 GB Max
Up to 12 Intel® Optane™ DC persistent memory PMem, 6.14TB max (7.68TB max with PMem + LRDIMM)
Supports registered ECC DDR4 DIMMs only
|
|
| Storage controllers |
Internal Controllers: PERC H330, H730P, H740P, HBA330
External Controllers: H840, 12 Gbps SAS HBA
Software RAID:S140
Boot Optimized Storage Subsystem (BOSS):HWRAID 2 x M.2 SSDs 240GB, 480GB
Internal Dual SD Module1
|
|
| Storage | Front drive bays: Up to 16 x 2.5” SAS/SATA (HDD/SSD) max 122.88TB or up to 8 x 3.5” SAS/SATA HDD max 128TB Optional DVD-ROM, DVD+RW | |
| Power Supplies |
Titanium 750W, Platinum 495W, 750W,
750W 240VDC,2
1100W,
1100W 380VDC2
1600W, 2000W and 2400W, Gold 1100W -48VDC Hot plug power supplies with full redundancy
Up to 6 hot plugs fans with full redundancy
|
|
| Form Factor | 2U rack server | |
| Embedded Management |
iDRAC9, iDRAC Direct, iDRAC RESTful with Redfish, Quick Sync 2 wireless module (optional)
|
|
| I/O & Ports |
Network daughter card options
4 x 1GbE or 2 x 10GbE + 2 x 1GbE or 4 x 10GbE or 2 x 25GbE
Front ports: 1 x Dedicated iDRAC Direct Micro-USB, 2 x USB 2.0, 1 x USB 3.0 (optional), 1 x VGA
Rear ports: 1 x Dedicated iDRAC network port, 1 x Serial, 2 x USB 3.0, 1 x VGA
Video card: 2 x VGA
Riser options with up to 8 PCIe Gen 3 slots, maximum of 4 x 16 slots
|
|
The Dell EMC PowerEdge R740 are two socket, 2U rack servers designed to run complex workloads using highly scalable memory, I/O capacity and network options. The R740 features the 2nd Generation Intel® Xeon® Scalable processor family, up to 24 DIMMs, PCI Express® (PCIe) 3.0 enabled expansion slots, and a choice of network interface technologies to cover NIC and rNDC. The PowerEdge R740 is a general-purpose platform capable of handling demanding workloads and applications, such as data warehouses, e-commerce, databases, and high-performance computing (HPC). The PowerEdge R740xd adds extraordinary storage capacity options, making it well-suited for data- intensive applications that require greater storage, while not sacrificing I/O performance.
R740 front views
The R740 supports up to 16 x 2.5 -inch or up to 8 x 3.5 -inch front-accessible, hot-plug hard drives that are secured by a removable front bezel. R740 Front view - 8 x 2.5 -inch hard drive configuration
R740 Front view - 16 x 2.5 -inch hard drive configuration
R740 Front view - 8 x 3.5 -inch hard drive configuration
The R740 back panel includes PSUs, Ethernet connectors, PCIe slots and many other features described in this guide R740 Rear view - with 8x PCIe slots available
R740 Rear view - with 4x PCIe slots available with riser 2 and riser 3 blanks
Figure 1. R740 internal chassis view
11. NVDIMM-N battery
