| MOQ: | 1 PCS |
| Price: | Contact us |
| Standard Packaging: | Original packaging box+Based on customer needs |
| Delivery Period: | 2-7 working days |
| Express | |
| R260 | |
| Payment Method: | L/C, D/A, D/P, T/T, Western Union |
| Supply Capacity: | /pieces >=2 pieces |
R260 is a newly designed short depth rack mounted service
Device with filter baffle, suitable for near edge customers
Household. R260 is equipped with the latest Intel Xeon E
2400 series processor, DDR5 memory NVMe
BOSS and Energy Star 4.0 PSU can provide powerful support
Maintain rapidly developing business for clients.
• Email and messaging
• Near edge applications
• Collaboration and sharing
R260 is a newly designed short depth single path rack mounted server designed specifically for small and medium-sized enterprises
Tailored for business and near edge customers, its powerful features and flexibility ensure that customers always go
At the forefront of technology.
R260 has a 17 inch short depth chassis that can adapt to various environments and is suitable for near edge applications, including warehouses, retail offices, or simple desks or shelves
Deployment on top). In addition, R260 is equipped with easy to manage filter baffles to prevent dust and grease from entering the internal hardware, ensuring good ventilation of the main components,
Thereby reducing malfunctions or performance issues, improving the mute effect, and increasing power efficiency.
Economical without sacrificing performance. R260 is an enterprise grade server with reliable hardware, next-generation processors and memory, advanced boot options, and secure features
IT infrastructure. In addition, R260 supports different hardware and software upgrade options to meet a wide range of customer needs.
Security is integrated into every stage of the PowerEdge lifecycle, including protected supply chain and factory to site integrity assurance. Trust Root Based on Silicon Wafer
Enable end-to-end resilience, while multi factor authentication (MFA) and role-based access control ensure trusted operations.
| R260 |
technical specifications |
|
| Processor | An Intel Xeon E-2400 series processor with up to 8 cores or An Intel Pentium G7400/G7400T processor with 2 cores |
|
| Memory | • 4 DDR5 DIMM slots, supporting up to UDIMM 128 GB and speeds up to 4400 MT/s • Only supports non registered ECC DDR5 DIMMs |
|
| Memory Controller | • Internal controllers: HBA355i adapter, PERC H355 adapter, PERC H755 adapter • Internal boot: Internal USB 3.0 or Boot Optimized Storage Subsystem (BOSS-N1) HWRAID HWRAID 2 x M.2 SSD • External HBA (non RAID): HBA355e adapter • Software controller: S160 |
|
| Drive Bay | Front bracket: • Up to 2 x 3.5-inch wired SAS/SATA hard drives, with a maximum capacity of 32 TB • Up to 6 x 2.5-inch hot swappable SAS/SATA hard drives/SSDs, with a maximum capacity of 46.08 TB |
|
| Power supply | • 450 W Platinum 100-240 VAC, non redundant • 700 W titanium grade 200-240 VAC or 240 VDC, non redundant |
|
| Fan | Up to 6 cable fans | |
| Size | • Height -42.8 millimeters (1.68 inches) • Width -482.0 millimeters (18.97 inches) • Depth -461.14 millimeters (18.15 inches), without baffle • Thickness -496.8 millimeters (19.55 inches) with baffle • Depth -426.6 millimeters (16.80 inches), with cable PSU, without baffle |
|
| Appearance specifications | 1U rack mounted server | |
| Embedded management | • iDRAC9 • iDRAC Direct • IDRAC RESTful API with Redfish • IDRAC Service Manual |
|
| Port | Front port • 1 iDRAC Direct (Micro AB USB) port • 1 USB 2.0 |
Rear port • 1 dedicated iDRAC Ethernet port • 1 USB 2.0 • 1 USB 3.2 Gen1 port • 1 VGA 1 x serial port |
| Internal port • 1 USB 3.2 Gen1 port |
||
| PCIe | Up to two PCIe 4.0 slots on the 4.0 adapter card • Slot 1:1 x 8, supports x 8 bandwidth, half length, half height • Slot ratio of 2:1 x 16, supporting x8 bandwidth, half length, half height |
|
DellTM PowerEdge R260 is a powerful entry-level single path rack mounted server designed to meet the evolving computing needs of organizations.
System functions:
● One Intel TM Xeon E-series processor or one Intel TM Pentium processor
● Four DDR5 UDIMM slots
● A non wired AC or DC power supply device or a wired AC power supply device
PCI Express has been enabled ® PCIe 4.0 expansion slot
Up to 6 2.5-inch SAS/SATA or up to 2 3.5-inch SAS/SATA drives
● Onboard LAN port
Front view of the system
Figure 1: Front view of two 3.5-inch drive systems
Figure 2: Front view of 6 x 2.5-inch drive system
Rear view of the system
Figure 3: Rear view of a system with a non wired PSU

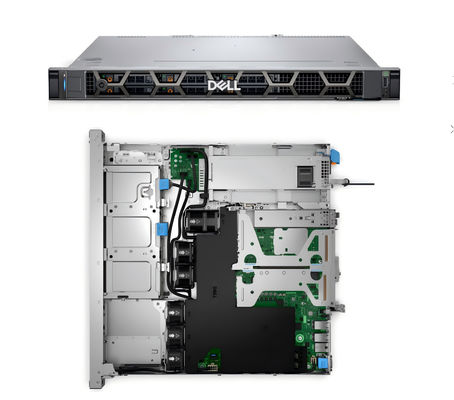

Internal components of the system
Figure 5: Internal view of a system with non wired PSU and 2.5-inch drive (with diffuser and adapter card)
1. System motherboard
2. DIMM slot
3. Airflow hood
4. Standard (STD) cooling fan
5. Quick Service Code Label
6. Front driver
7. Drive backplane
8. High Performance (HPR) Fan - Optional
9. Power Inserter Board (PIB)
10. Power supply device (non wired)
11. Anti theft switch
12. Butterfly adapter card with 2 PCIe slots
13. BOSS N1 module
|
|
