| MOQ: | 1 PCS |
| Price: | Contact us |
| Standard Packaging: | Original packaging box+Based on customer needs |
| Delivery Period: | 2-7 working days |
| Express | |
| R360 | |
| Payment Method: | L/C, D/A, D/P, T/T, Western Union |
| Supply Capacity: | /pieces >=2 pieces |
Dell PowerEdge R360 provides optimized performance
Efficiency, high-speed memory and capacity, as well as the ability to meet constant demands
The powerful computing power required by business applications. wrong
Often suitable for use inside or outside of data centers:
• Small and medium-sized enterprises
ROBO/Near Edge
• Collaboration and sharing
• Database support and management
The Dell PowerEdge R360 features an easy to manage rack mounted server designed specifically for those seeking
Designed for cost-effective enterprise functions, it can meet the constantly changing computing needs.
Dell PowerEdge R360 is equipped with the all-new Intel ® xeon ® The E-2400 processor is designed specifically for office and data intensive applications, making it perfect for you
Continuously developing business. With 4400/MT DDR5 and advanced NVMe BOSS-N1, it supports lower latency and seamless scalability, making computing power even higher
Floor by floor. In addition to computing power, the Dell PowerEdge R360 is also equipped with high-efficiency power supplies, hot swappable storage, and air cooling fans, making it safe and reliable
A responsible choice.
The PowerEdge R360 supports NVIDIA A2 GPU to meet the growing demand for video and audio computing. It can serve customers from retail, manufacturing, and logistics
ROBO and near edge customers provide cost-effective solutions.
This makes the PowerEdge R360 a powerful and versatile server suitable for small and medium-sized enterprises, supporting everything from business critical to cloud infrastructure
Various workloads are constructed. It is also widely used for point of sale transactions, as well as enterprise level data analysis and virtualization requirements.
Security is integrated into every stage of the PowerEdge lifecycle, including protected supply chain and factory to site integrity assurance. Trust Root Based on Silicon Wafer
Enable end-to-end resilience, while multi factor authentication (MFA) and role-based access control ensure trusted operations.
| R360 | technical specifications | |
| Processor | One Intel Xeon E-2400 series processor (with up to 8 cores), or one Intel Pentium G7400/G7400T processor (with up to 2 cores) | |
| Memory Controller | • Internal controllers: HBA355i adapter, PERC H355 adapter, PERC H755 adapter, HBA355i front, H355 front, H755 front • Internal boot: Internal USB 3.0 or Boot Optimized Storage Subsystem (BOSS-N1): HWRAID 2 M.2 SSDs USB • External HBA (non RAID): HBA355e adapter • Software controller: S160 |
|
| Drive Bay | Front bracket: • Up to 4 3.5-inch SAS/SATA (HDD/SSD) with a maximum capacity of 64 TB • Up to 8 2.5-inch SAS/SATA (SSD) with a maximum capacity of 61.44 TB |
|
| Power supply | • 600 W Platinum 100-240 VAC or 240 VDC, hot swappable redundant • 700 W titanium grade 200-240 VAC or 240 VDC, hot swappable redundant |
|
| Fan | Up to 4 fans | |
| Size | • Height -42.8 millimeters (1.68 inches) • Width -482.0 millimeters (18.97 inches) • Depth -585.3 millimeters (23.04 inches), without baffle • Depth -598.9 millimeters (23.57 inches), with baffle |
|
| Appearance specifications | 1U rack mounted server | |
| Embedded management | • iDRAC9 • iDRAC Direct • IDRAC RESTful API with Redfish • IDRAC Service Manual |
|
| Port | Front port • 1 iDRAC Direct (Micro AB USB) port • 1 USB 2.0 |
Back port • 1 dedicated iDRAC Ethernet port • 1 USB 2.0 • 1 USB 3.2 Gen1 port • 1 VGA • 1 serial |
| Internal port • 1 USB 3.2 Gen1 port |
||
| PCIe | Up to two PCIe 4.0 slots on the 4.0 adapter card • Slot 1:1 x 8, supports x 8 bandwidth, half length, half height • Slot ratio of 2:1 x 16, supporting x8 bandwidth, half length, half height • A dedicated PCIe x8 slot on the system motherboard for internal PERC |
|
The Dell PowerEdge R360 is a powerful entry-level single path rack mounted server designed to meet the evolving computing needs of organizations.
System functions:
● An Intel ® Xeon E-series processor or an Intel processor ® Pentium processor.
● Four DDR5 DIMM slots
● Two redundant AC or DC power supply units
PCI Express has been enabled ® PCIe 4.0 expansion slot
Up to 8 2.5-inch SAS/SATA or up to 4 3.5-inch SAS/SATA
● Onboard LAN port

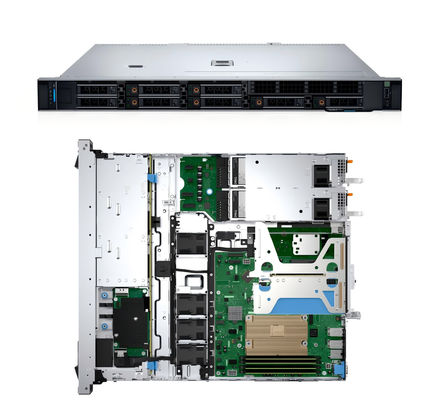

Front view of the system
Figure 1: Front view of a 4 x 3.5-inch drive system
Figure 2: Front view of 8 x 2.5-inch drive system
Rear view of the system
Figure 3: Rear view of the system
Internal system
Figure 4: Internal System
1. System motherboard
2. DIMM slot
3. Processor heatsink
4. Standard (STD) cooling fan
5. Drive backplane
6. Front PERC card
7. Quick Service Code Label
8. Front driver
9. High Performance (HPR) Fan - Optional
10. Anti theft switch
11. Power Inserter Board (PIB)
12. Power supply device
13. Butterfly adapter card with 2 PCIe slots
14. Front PERC card adapter card on dedicated internal PCIe slot
15. BOSS N1 module
|
|
