| MOQ: | 1 pieces |
| Price: | Contact us |
| Standard Packaging: | Based on customer needs |
| Delivery Period: | 2-7 working days |
| In stock | |
| Express, AIR | |
| Dell Poweredge Server T360 | |
| Payment Method: | L/C, D/A, D/P, T/T, Western Union |
| Supply Capacity: | /pieces >=2 pieces |
The Dell PowerEdge T360 addresses evolving compute demands with an easy-to-manage tower server designed for businesses looking for affordable enterprise features.
| T360 | Technical Specification | |
| Processor | One Intel Xeon E-2400 series processor with up to eight cores or one Intel Pentium G7400/ G7400T processor with up to two cores | |
| Memory |
• 4 DDR5 DIMM slots, supports UDIMM up to 32 GB per DIMM, speeds up to 4400 MT/s
• Supports unregistered ECC DDR5 DIMMs only
|
|
|
Storage controllers |
• Internal: HBA355i Adapter, PERC H355 Adapter, PERC H755 Adapter
• Internal Boot: Boot Optimized Storage Subsystem (BOSS-N1): HWRAID 2 x M.2 NVMe SSDs drives, or USB
• External HBA (non-RAID): HBA355e Adpt
• Software RAID: S160
|
|
| Drive bays |
Front bays:
• Up to 4 x 3.5-inch SATA HDD/SSD, max 64 TB
• Up to 8 x 3.5-inch SAS/SATA HDD/SSD, max 128 TB
• Up to 8 x 2.5-inch SAS/SATA HDD/SSD with 3.5-inch to 2.5-inch adapter, max 61.44 TB
|
|
| Power supplies |
• 450 W Platinum 100-240 V AC, cabled
• 600 W Platinum 100-240 V AC or 600 W 240 V DC, hot swap redundant
• 700 W Titanium 200-240 V AC or 700 W 240 V DC, hot swap redundant
|
|
| Fans | • One Standard (STD) fan and one optional High performance (HPR) fan | |
| Up to two cabled fans | ||
| Dimensions |
• Height – 382.5 mm (15.06 inches) • Width – 175 mm (6.89 inches) • Depth – 579.72 mm (22.82 inches) with bezel |
|
| Form factor |
4.5U tower server |
|
| Embedded Management |
• iDRAC9
• iDRAC Direct
• iDRAC RESTful API with Redfish
• iDRAC Service Manual
|
|
| Ports |
Front Ports • 1 x iDRAC Direct (Micro-AB USB) port • 1 x USB 3.2 Gen1
|
Rear Ports
• 3 x USB 2.0
• 3 x USB 3.2 Gen1
• 1 x Dedicated iDRAC Ethernet port
• 1 x Serial
• 1 x VGA
• 2 x Ethernet ports
|
| Internal Ports • 1 x USB 3.2 Gen1 | ||
| PCIe |
Up to four PCIe slots
• Slot 1: x8 Gen4 Full height, half length
• Slot 2: x16 Gen5 Full height, half length
• Slot 3: x1 Gen4 Full height, half length
• Slot 4: x8 Gen4 Full height, half length
|
|

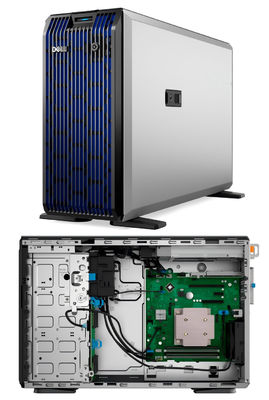

Front view of the system
Figure 1. Front view of 4 x 3.5-inch drive system
Figure 2. Front view of 8 x 3.5-inch drive system
Figure 3. Rear view of the system
Figure 4. Rear view of the system with cable PSU
Figure 5. Inside view of the 8 x 3.5-inch configuration
1. PSU 2. System board
3. Intrusion switch 4. Cooling fan
5. Memory module sockets 6. Heat sink
7. Backplane
|
|
