| MOQ: | 1 pieces |
| Price: | Contact us |
| Standard Packaging: | Based on customer needs |
| Delivery Period: | 2-7 working days |
| In stock | |
| Express, AIR | |

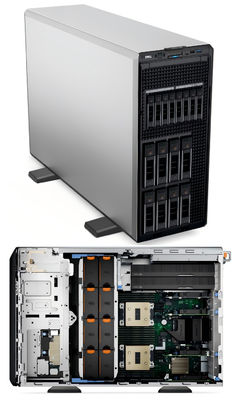

| Dell PowerEdge T560 | |
| Payment Method: | L/C, D/A, D/P, T/T, Western Union |
| Supply Capacity: | /pieces >=2 pieces |
A purpose-built office-friendly server, maximizing next-gen technologies with GPU options to achieve enterprise-level performance in remote or branch office locations.
The Dell PowerEdge T560, powered by the 4th or 5th Generation Intel® Xeon® Scalable processors, is an enterprise class tower server that offers advanced technologies with accelerators. It is a purpose-built server with office friendly acoustics that maximizes next-gen technologies to achieve optimal performance in a small footprint. The
Dell PowerEdge T560 is an ideal tower server for traditional corporate IT, virtualization, database and analytics, and
inferencing for AI/ML, delivering robust compute performance.
Security is integrated into every phase of the PowerEdge lifecycle, including protected supply chain and factory-to-site integrity assurance. Silicon-based root of trust anchors end-to-end boot resilience while Multi-Factor Authentication (MFA) and role-based access controls ensure trusted operations.
The Dell OpenManage™ systems management portfolio delivers a secure, efficient, and comprehensive solution for PowerEdge servers. Simplify, automate and centralize one-to-many management with the OpenManage Enterprise console and iDRAC.
From recycled materials in our products and packaging, to thoughtful, innovative options for energy efficiency, the PowerEdge portfolio is designed to make, deliver, and recycle products to help reduce the carbon footprint and lower your operation costs. We even make it easy to retire legacy systems responsibly with Dell Technologies Services
| T560 | Technical Specification | |
| Processor | Up to two 4th Generation Intel® Xeon Scalable processor, with up to 32 cores per processor | |
| Memory |
• 16 DDR5 DIMM slots, supports RDIMM 1 TB max
• Speeds up to 4800 MT/s on the 4th Generation Intel® Xeon Scalable processor
• Speeds up to 5200 MT/s on the 5th Generation Intel® Xeon Scalable processor
• Supports registered ECC DDR5 DIMMs only
|
|
|
Storage controllers |
• Internal PERC: fPERC H965i, fPERC H755N, fPERC H755, fPERC H355, fPERC HBA355i, HBA465i fPERC
• Internal Boot: Boot Optimized Storage Subsystem (BOSS-N1): HWRAID 2 x M.2 NVMe SSD drives, or USB
• External HBA (non-RAID): PERC HBA355e
• Software RAID: S160 (for NVMe drives only)
|
|
| Drive bays |
Front bays:
• Up to 12 x 3.5-inch SAS/SATA HDD drives, max 180 TB
• Up to 8 x 3.5-inch SAS/SATA HDD drives, max 120 TB
• Up to 8 x 3.5-inch SAS/ SATA HDD + 8 x 2.5-inch NVMe SSD drives, max 240 TB
• Up to 8 x 2.5-inch SAS/SATA HDD drives, max 120 TB
• Up to 16 x 2.5-inch SAS/SATA HDD drives, max 240 TB
• Up to 24 x 2.5-inch SAS/SATA HDD drives, max 360 TB
|
|
| Power supplies |
• 600 W Platinum 100-240 VAC/240 VDC
• 700 W Titanium 200-240 VAC/240 VDC
• 800 W Platinum 100-240 VAC/240 VDC
• 1100 W Titanium 100-240 VAC/240 VDC
• 1100 W DC/-48-(-60) V
• 1400 W Platinum 100-240 VAC/240 VDC
• 1400 W Titanium 100-240 VAC/240 VDC
• 1400 W Titanium 277 VAC/336 VDC
• 1800 W Titanium 200-240 VAC/240 VDC
• 2400 W Platinum 100-240 VAC/240 VDC
• 2800 W Titanium 200-240 VAC/240 VDC
|
|
| Fans | • Up to eight Standard (STD) fans or High performance (HPR) fans | |
| Dimensions |
• Height — 464.0 mm (18.26 inches) (with feet) 508.8 mm (20.03 inches) (with caster wheels) 446.0 mm (17.60 inches) (without feet) • Width — 200.0 mm (7.87 inches) • Depth — 678.2 mm (26.70 inches) (with bezel) 660.6 mm (26 inches) (without bezel) |
|
| Form factor |
4.5U tower server |
|
| Embedded Management |
• iDRAC9
• iDRAC Direct
• iDRAC RESTful API with Redfish
• iDRAC Service Module
• Quick Sync 2 wireless module
|
|
| Ports |
Front Ports
• 1 x USB 2.0
• 1 x USB 3.0
• 1 x iDRAC Direct (Micro-AB USB) port
|
Rear Ports
• 1 x USB 2.0
• 1 x USB 3.0
• 1 x Serial port (optional)
• 1 x Dedicated iDRAC (RJ45) port
• 1 x VGA port
• 2 x Ethernet ports
|
|
Internal Ports • 1 x USB 3.0 (optional) |
||
| PCIe |
Up to six PCIe slots:
• Slot 1: x16 Gen5 Full height, Full length
• Slot 2: x16 Gen5 Full height, Full length
• Slot 3: x16 Gen4 Full height, Half length
• Slot 4: x16 Gen4 Full height, Half length
• Slot 5: x16 (x8 lanes) Gen4 Full height, Half length
• Slot 6: x16 Gen4 Full height, Half length
|
|
Front view of the system
Figure 1. Front view of 12 x 3.5-inch drive system
Figure 2. Front view of 8 x 3.5-inch drive system
Figure 3. Front view of 8 x 3.5-inch + 8 x 2.5-inch drive system
Figure 4. Front view of 8 x 2.5-inch drive system
Figure 5. Front view of 16 x 2.5-inch drive system
Figure 6. Front view of 24 x 2.5-inch drive system
Figure 7. Rear view of the system
Figure 8. Inside view of the 12 x 3.5-inch configuration + PCIe Gen5 system
Figure 9. Inside view of the 24 x 2.5-inch configuration system
|
|
